This item is Discontinued.

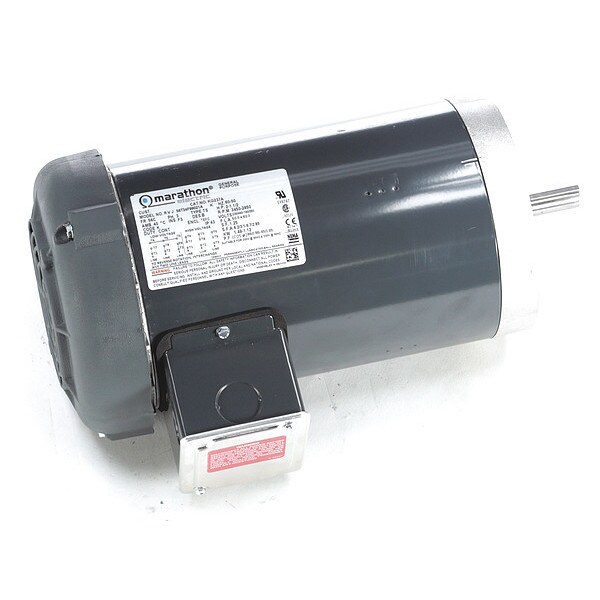

Marathon 3-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 3,450 Nameplate RPM 056T34F99021

3-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 3,450 Nameplate RPM (Discontinued)

  • Mfr # 056T34F99021
  • Zoro # G8498421
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
056T34F99021
Zoro #
G8498421
UPC #
-
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Overall Length
14 3/8 in
Shaft Dia.
5/8 in
Length Less Shaft
12 5/16 in
Shaft Length
2 1/16 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Face
HP
2
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56C
Motor Thermal Protection
None
Motor Service Factor
1.25
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
3,450
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Max. Ambient Temp.
104 Degrees F
Phase
Three
Full Load Amps
5.0/2.5 A
Hz
60/50 Hz
Nominal Efficiency
85.5 %
RPM Group
3001-3600
Duty
Continuous
Motor Bearings
Ball
Ins. Class
F
Inverter Rated
Yes
No. of Speeds
1
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
RPM @ 50Hz
3,450
Service Factor @ 50Hz
1.25
Weight
49 lb
Full Load Amps @ 50Hz
5.0/2.5 A
Usable @ 208V
No
HP @ 50Hz
2
Usable @ 200V
No
Voltage @ 50Hz
230/460V AC

Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.0/2.5 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes
