  6. 3-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460 Voltage, 1765 Nameplate RPM

This item is Discontinued.

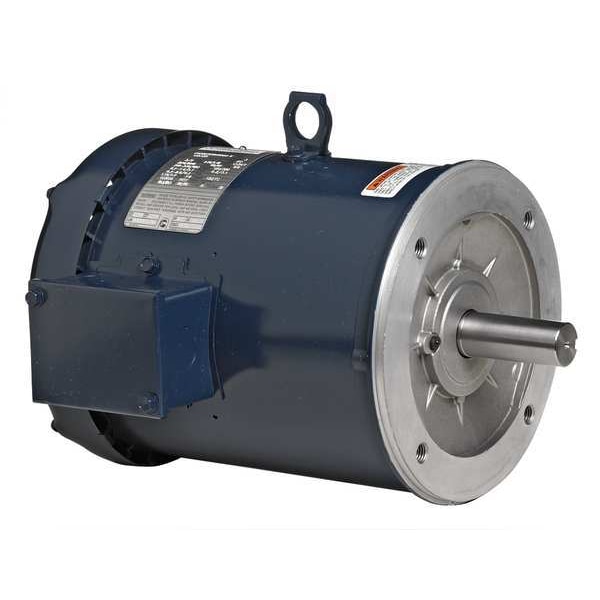

Marathon 3-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460 Voltage, 1765 Nameplate RPM 182TTFW4027

3-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460 Voltage, 1765 Nameplate RPM (Discontinued)

  • Mfr # 182TTFW4027
  • Zoro # G5702112
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
182TTFW4027
Zoro #
G5702112
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 9/16 in
Shaft Length
2 7/8 in
Overall Length
14 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1 1/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
3
RPM Range
1701-1800
Voltage
208-230/460
Frame
182TC
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
1765
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Frame Material
Rolled Steel
Motor Shaft Design
Keyed
Standards
UL (E49747), CSA (LR2025)
Hz
60/50
Frame Material
Rolled steel
Inverter Rated
Yes
Motor Efficiency Group
Energy Efficient
Max. Ambient Temp.
40 Degrees C
Full Load Amps
8.8-8.4/4.2
RPM Group
1701-1800
Phase
Three
Motor Bearings
Ball
Duty
Continuous
Ins. Class
F
No. of Speeds
1
Nominal Efficiency
87.5%
Capacitor Required
No

Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1765, No. of Speeds 1, Voltage 208-230/460, Full Load Amps 8.8-8.4/4.2, 182TC Frame, Hz 60/50, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
