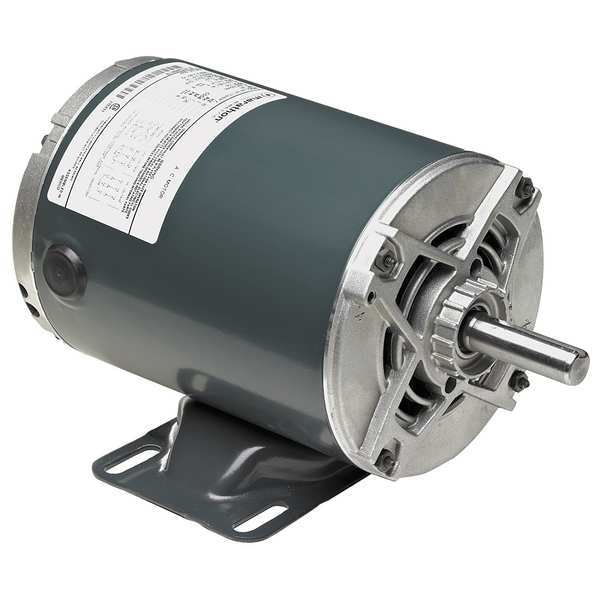

3-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460 Voltage, 1725 Nameplate RPM (Discontinued)
- Mfr # 5K46KN4071
- Zoro # G5260482
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5K46KN4071
Zoro #
G5260482
UPC #
-
Country of Origin
Multiple
Dimensions
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Overall Length
10 3/4 in
Length Less Shaft
8 7/8 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1725, No. of Speeds 1, Voltage 208-230/460, Full Load Amps 3.3-3.0/1.5, 56 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
