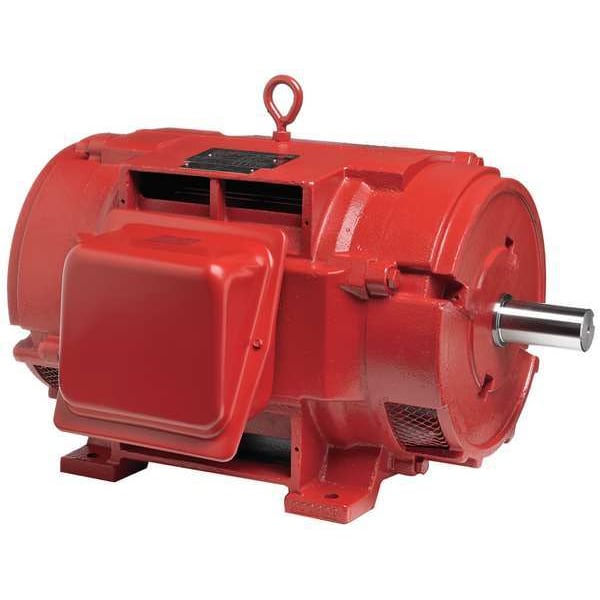

3-Phase General Purpose Motor, 400 HP, 447T Frame, 460 Voltage, 1785 Nameplate RPM (Discontinued)
- Mfr # 447TTDN16048
- Zoro # G8497889
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
447TTDN16048
Zoro #
G8497889
UPC #
-
Country of Origin
United States
Dimensions
Manufacturers Warranty Length
1 yr
Length Less Shaft
34 3/4 in
Shaft Dia.
3 3/8 in
Overall Length
43 1/4 in
Shaft Length
8 1/2 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 400 HP, Nameplate RPM 1785, No. of Speeds 1, Voltage 460, Full Load Amps 460.0, 447T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
