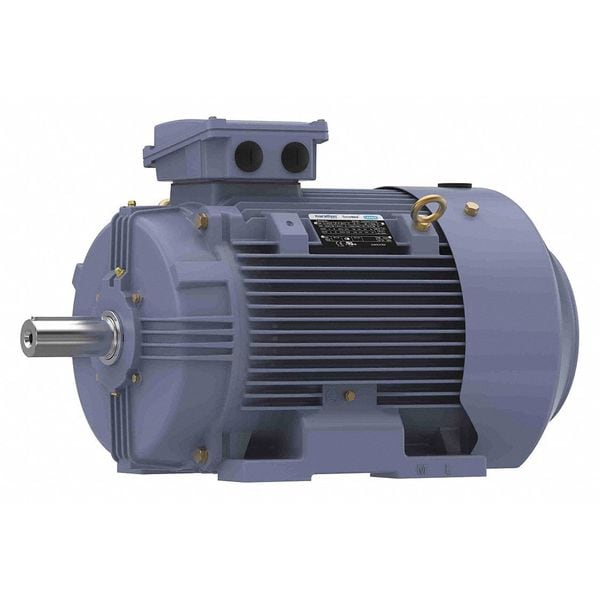

Marathon GP Motor, 30 HP, 3,550 RPM, 230/460V, 180M TCA0221AE211GAA009 - main

GP Motor, 30 HP, 3,550 RPM, 230/460V, 180M

  • Mfr # TCA0221AE211GAA009

  • Zoro # G8662155

product price: $3,529.35
/ea
Item requires special delivery charges. A $220.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
30
RPM Range
3001-3600
Voltage
230/460V AC
Frame
180M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0221AE211GAA009
Zoro #
G8662155
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
110 mm
Manufacturers Warranty Length
1 yr
Shaft Dia.
48 mm
Overall Length
712 mm
Length Less Shaft
602 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
30
RPM Range
3001-3600
Voltage
230/460V AC
Frame
180M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
68.0/34.0 A
Phase
Three
kW
22.0
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Motor Application
General Purpose
Ins. Class
F
Duty
Continuous
Nameplate RPM
3550 rpm
Standards
CE, UL Recognized
Nominal Efficiency
91.7 %
CC Number
CC003A
Hz
60/50 Hz
Motor Frame Material
Cast Iron
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous
Inverter Rated
Yes
No. of Speeds
1
NEMA Design
N
Weight
438.7 lb
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, 22.0 kW, Nameplate RPM 3550 rpm, Frame 180M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 68.0/34.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600
