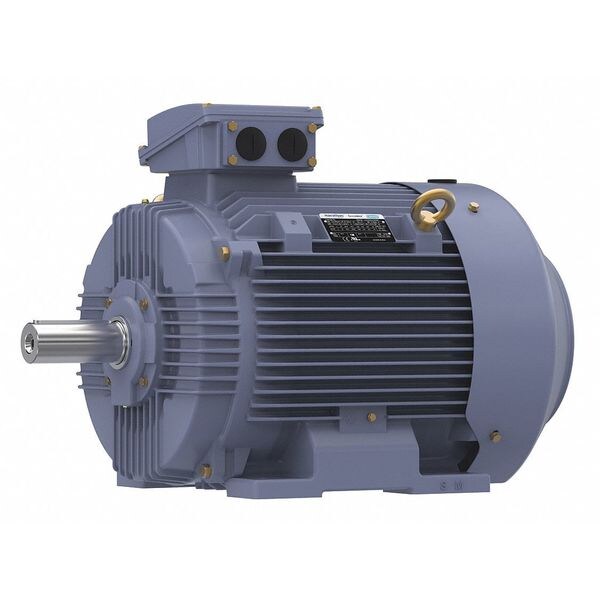

Marathon GP Motor, 60 HP, 1,785 RPM, 230/460V, 225M TCA0452AE211GAA009 - main

GP Motor, 60 HP, 1,785 RPM, 230/460V, 225M

  • Mfr # TCA0452AE211GAA009

  • Zoro # G8661324

product price: $8,541.99
/ea
Additional $335.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
60
RPM Range
1701-1800
Voltage
230/460V AC
Frame
225M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0452AE211GAA009
Zoro #
G8661324
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
140 mm
Manufacturers Warranty Length
1 yr
Shaft Dia.
60 mm
Overall Length
862 mm
Length Less Shaft
722 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
60
RPM Range
1701-1800
Voltage
230/460V AC
Frame
225M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
142.0/71.0 A
Motor Shaft Rotation
CW/CCW
Hz
60/50 Hz
Standards
CE, UL Recognized
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nameplate RPM
1785 rpm
CC Number
CC003A
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Motor Application
General Purpose
Motor Service Factor
1.15
kW
45.0
Nominal Efficiency
95 %
Motor Frame Material
Cast Iron
Motor Bearings
Ball
Phase
Three
Ins. Class
F
Inverter Rated
Yes
Motor Mounting Position
Horizontal
Full Load Amps @ 50Hz
138.0/69.0 A
No. of Speeds
1
Usable @ 200V
No
Duty Cycle
Continuous
HP @ 50Hz
60
NEMA Design
N
Usable @ 208V
No
RPM @ 50Hz
1785 rpm
Service Factor @ 50Hz
1.15
Voltage @ 50Hz
200/400
Weight
1,003.1 lb
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, 45.0 kW, Nameplate RPM 1785 rpm, Frame 225M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 142.0/71.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800
