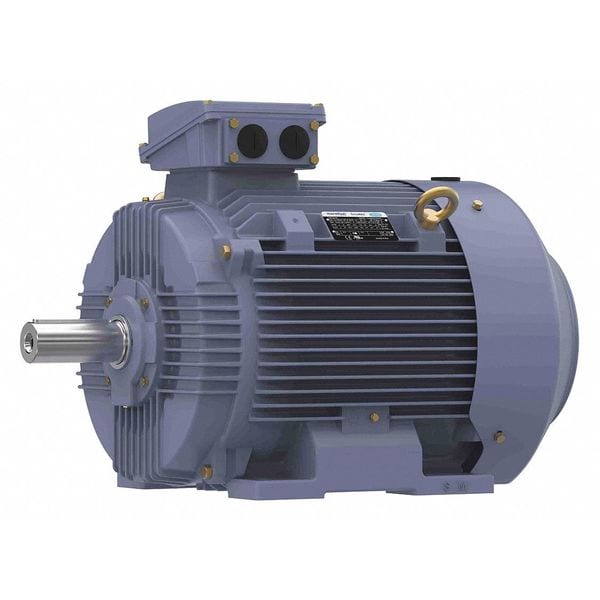

Marathon GP Motor, 60 HP, 3,575 RPM, 230/460V, 225M TCA0451AE211GAA009 - main

GP Motor, 60 HP, 3,575 RPM, 230/460V, 225M

  • Mfr # TCA0451AE211GAA009

  • Zoro # G8662252

product price:  $9,684.99
/ea
Item requires special delivery charges. A $380.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
60
RPM Range
3001-3600
Voltage
230/460V AC
Frame
225M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0451AE211GAA009
Zoro #
G8662252
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
110 mm
Shaft Dia.
55 mm
Overall Length
832 mm
Length Less Shaft
722 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
60
RPM Range
3001-3600
Voltage
230/460V AC
Frame
225M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
138.0/69.0 A
Nominal Efficiency
93.6 %
Phase
Three
Nameplate RPM
3575 rpm
Hz
60/50 Hz
Standards
CE, UL Recognized
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Motor Bearings
Ball
CC Number
CC003A
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
kW
45.0
Motor Application
General Purpose
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Frame Material
Cast Iron
RPM @ 50Hz
3575 rpm
Duty Cycle
Continuous
Weight
895.1 lb
HP @ 50Hz
60
Inverter Rated
Yes
Voltage @ 50Hz
200/400
Motor Mounting Position
Horizontal
Service Factor @ 50Hz
1.15
No. of Speeds
1
Full Load Amps @ 50Hz
132.0/66.0 A
Usable @ 208V
No
NEMA Design
N
Usable @ 200V
No
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, 45.0 kW, Nameplate RPM 3575 rpm, Frame 225M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 138.0/69.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600
