  11. GP Motor, 75 HP, 3,575 RPM, 230/460V, 250M

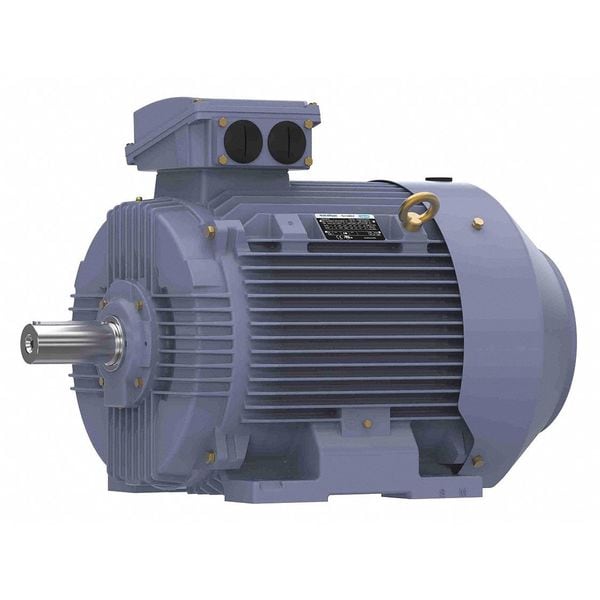

Marathon GP Motor, 75 HP, 3,575 RPM, 230/460V, 250M TCA0551AE211GAA009 - main

GP Motor, 75 HP, 3,575 RPM, 230/460V, 250M

  • Mfr # TCA0551AE211GAA009

  • Zoro # G8661710

product price: $10,078.99
/ea
Additional $380.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
75
RPM Range
3001-3600
Voltage
230/460V AC
Frame
250M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0551AE211GAA009
Zoro #
G8661710
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Dia.
60 mm
Shaft Length
140 mm
Overall Length
941 mm
Length Less Shaft
801 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
75
RPM Range
3001-3600
Voltage
230/460V AC
Frame
250M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
166.0/83.0 A
Motor Frame Material
Cast Iron
Motor Application
General Purpose
Nameplate RPM
3575 rpm
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Ins. Class
F
Motor Bearings
Ball
CC Number
CC003A
Max. Ambient Temp.
40 Degrees C
Phase
Three
kW
56.0
Nominal Efficiency
93.6 %
Standards
CE, UL Recognized
Hz
60/50 Hz
Voltage @ 50Hz
230/460
Weight
1,135.4 lb
NEMA Design
N
HP @ 50Hz
75
Inverter Rated
Yes
Motor Mounting Position
Horizontal
Full Load Amps @ 50Hz
166.0/83.0 A
RPM @ 50Hz
3575 rpm
Usable @ 200V
No
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Usable @ 208V
No
No. of Speeds
1
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, 56.0 kW, Nameplate RPM 3575 rpm, Frame 250M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 166.0/83.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600
