  6. Metric Motor, 10 HP, 3,540 RPM, 230/460V

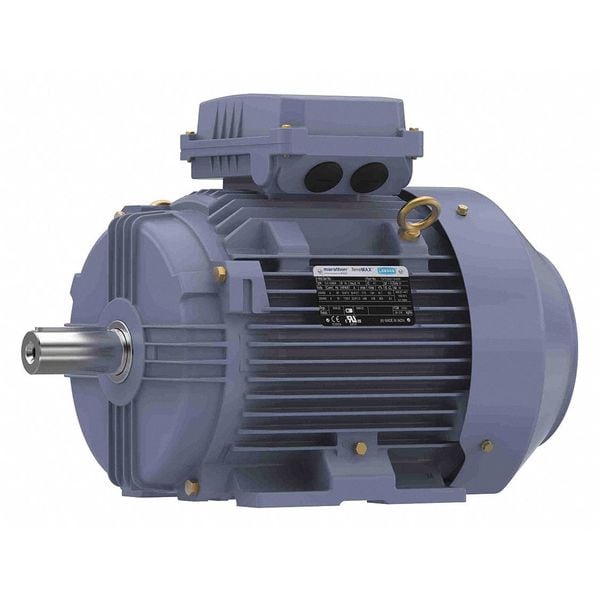

Marathon Metric Motor, 10 HP, 3,540 RPM, 230/460V TCA7P51AE211GAA009 - main

Metric Motor, 10 HP, 3,540 RPM, 230/460V

  • Mfr # TCA7P51AE211GAA009

  • Zoro # G8662261

product price:  $1,435.49
/ea
Item requires special delivery charges. A $70.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
10
RPM Range
3001-3600
Voltage
230/460V AC
Frame
132S
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TCA7P51AE211GAA009
Zoro #
G8662261
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
80 mm
Shaft Dia.
38 mm
Manufacturers Warranty Length
1 yr
Length Less Shaft
385 mm
Overall Length
465 mm

Details

Item
Metric Motor
Motor Design
Three-Phase
HP
10
RPM Range
3001-3600
Voltage
230/460V AC
Frame
132S
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
23.8/11.9 A
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
90.2 %
kW
7.5
Motor Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
3,540
Standards
CE, UL Recognized
Phase
Three
Motor Application
General Purpose
Hz
60/50 Hz
Motor Bearings
Ball
CC Number
CC003A
Motor Service Factor
1.15
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Ins. Class
F
Service Factor @ 50Hz
1.15
RPM @ 50Hz
3540 rpm
Motor Mounting Position
Horizontal
NEMA Design
N
Weight
187.4 lb
No. of Speeds
1
Usable @ 200V
No
Duty Cycle
Continuous
HP @ 50Hz
10 hp
Voltage @ 50Hz
200/400
Usable @ 208V
No
Inverter Rated
Yes
Full Load Amps @ 50Hz
21.0/10.5 A
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, 7.5 kW, Nameplate RPM 3,540, Frame 132S, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 23.8/11.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CE, UL Recognized
