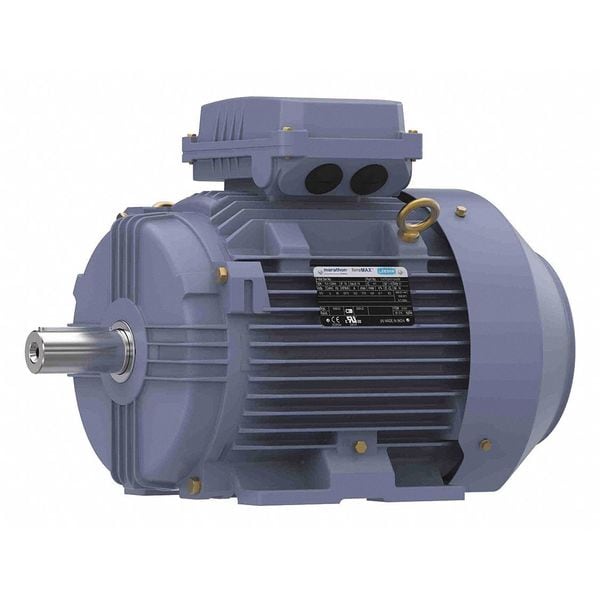

Metric Motor, 10 HP, 3,540 RPM, 575V, 132S
Mfr # TCA7P51AP211GAA009
Zoro # G8661464
product price:Â $1,545.99
/ea
Additional $95.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
HP
10
RPM Range
3001-3600
Voltage
575V AC
Frame
132S
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
TCA7P51AP211GAA009
Zoro #
G8661464
UPC #
-
Country of Origin
India
Dimensions
Shaft Length
80 mm
Shaft Dia.
38 mm
Manufacturers Warranty Length
1 yr
Overall Length
465 mm
Length Less Shaft
385 mm
Shaft Diameter
38 mm
Frame Size
132S
Description
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, 7.5 kW, Nameplate RPM 3,540, Frame 132S, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 9.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CE, UL Recognized
