  11. Metric Motor, 4 HP, 1,765 RPM, 230/460V

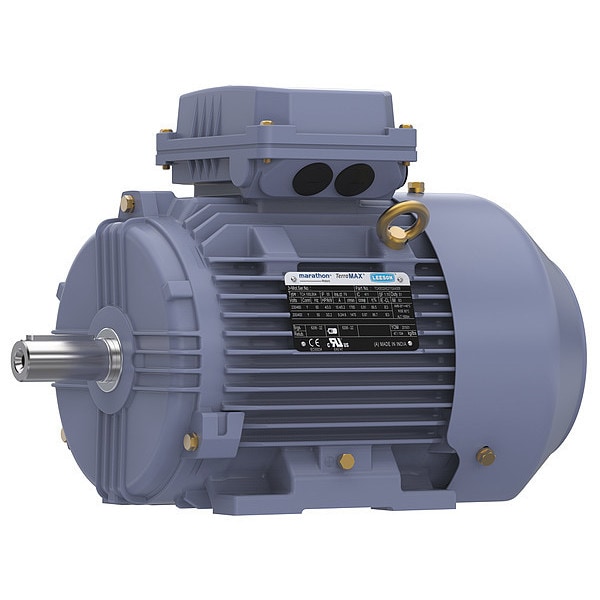

Marathon Metric Motor, 4 HP, 1,765 RPM, 230/460V TCA0032AE211GAA009 - main

Metric Motor, 4 HP, 1,765 RPM, 230/460V

  • Mfr # TCA0032AE211GAA009

  • Zoro # G8662313

product price: $823.96
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
4
RPM Range
1701-1800
Voltage
230/460V AC
Frame
100L
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0032AE211GAA009
Zoro #
G8662313
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
60 mm
Shaft Dia.
28 mm
Overall Length
398 mm
Length Less Shaft
338 mm

Details

Item
Metric Motor
Motor Design
Three-Phase
HP
4
RPM Range
1701-1800
Voltage
230/460V AC
Frame
100L
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
10.4/5.2 A
Motor Application
General Purpose
Phase
Three
CC Number
CC003A
kW
3.0
Nominal Efficiency
89.5 %
Motor Frame Material
Cast Iron
Motor Shaft Rotation
CW/CCW
Hz
60/50 Hz
Motor Service Factor
1.15
Standards
CE, UL Recognized
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Duty
Continuous
Ins. Class
F
Nameplate RPM
1765 rpm
Inverter Rated
Yes
Usable @ 200V
No
No. of Speeds
1
Weight
103.6 lb
Duty Cycle
Continuous
NEMA Design
N
Motor Mounting Position
Horizontal
Usable @ 208V
No
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 4 HP, 3.0 kW, Nameplate RPM 1765 rpm, Frame 100L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 10.4/5.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, UL Recognized
