  11. Metric Motor, 4 HP, 3,499 RPM, 230/460V

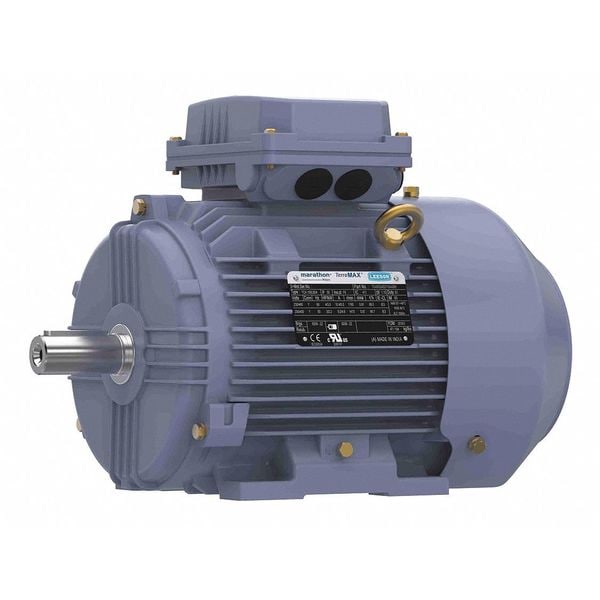

Marathon Metric Motor, 4 HP, 3,499 RPM, 230/460V TCA0031AE211GAA009 - main

Metric Motor, 4 HP, 3,499 RPM, 230/460V

  • Mfr # TCA0031AE211GAA009

  • Zoro # G8662444

product price: $838.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
4
RPM Range
3001-3600
Voltage
230/460V AC
Frame
100L
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0031AE211GAA009
Zoro #
G8662444
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
28 mm
Manufacturers Warranty Length
1 yr
Shaft Length
60 mm
Length Less Shaft
338 mm
Overall Length
398 mm

Details

Item
Metric Motor
Motor Design
Three-Phase
HP
4
RPM Range
3001-3600
Voltage
230/460V AC
Frame
100L
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
9.8/4.9 A
Phase
Three
Motor Application
General Purpose
Motor Bearings
Ball
Hz
60/50 Hz
Motor Frame Material
Cast Iron
Motor Shaft Rotation
CW/CCW
CC Number
CC003A
kW
3.0
Motor Service Factor
1.15
Standards
CE, UL Recognized
Nameplate RPM
3499 rpm
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Nominal Efficiency
88.5 %
Inverter Rated
Yes
Usable @ 208V
No
No. of Speeds
1
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 200V
No
Weight
90.4 lb
NEMA Design
N
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 4 HP, 3.0 kW, Nameplate RPM 3499 rpm, Frame 100L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 9.8/4.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CE, UL Recognized
