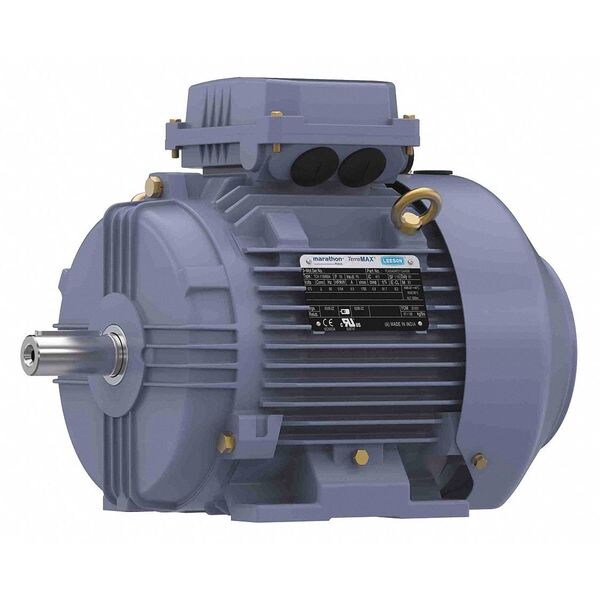

Marathon Metric Motor, 5 1/2 HP, 3,520 RPM, 575V TCA0041AP211GAA009 - main

Metric Motor, 5 1/2 HP, 3,520 RPM, 575V

  • Mfr # TCA0041AP211GAA009

  • Zoro # G8661394

product price:  $883.20
/ea
Sold in multiples of 2 for $1,766.40
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5 1/2
RPM Range
3001-3600
Voltage
575V AC
Frame
112M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TCA0041AP211GAA009
Zoro #
G8661394
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
60 mm
Shaft Dia.
28 mm
Length Less Shaft
339 mm
Overall Length
399 mm

Details

Item
Metric Motor
Motor Design
Three-Phase
HP
5 1/2
RPM Range
3001-3600
Voltage
575V AC
Frame
112M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
5.0 A
Nameplate RPM
3520 rpm
CC Number
CC003A
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Standards
CE, UL Recognized
kW
4.0
Motor Bearings
Ball
Voltage Compatibility
575V AC
Phase
Three
Motor Frame Material
Cast Iron
Hz
60 Hz
Nominal Efficiency
89.5 %
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
Duty
Continuous
Weight
116.8 lb
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 208V
No
Usable @ 200V
No
Motor Mounting Position
Horizontal
NEMA Design
N
Inverter Rated
Yes
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 1/2 HP, 4.0 kW, Nameplate RPM 3520 rpm, Frame 112M, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CE, UL Recognized
