  11. Mtr, 3 Ph, 1 HP, 3450,200-230/460V, 56J, TEFC
This item is Discontinued.

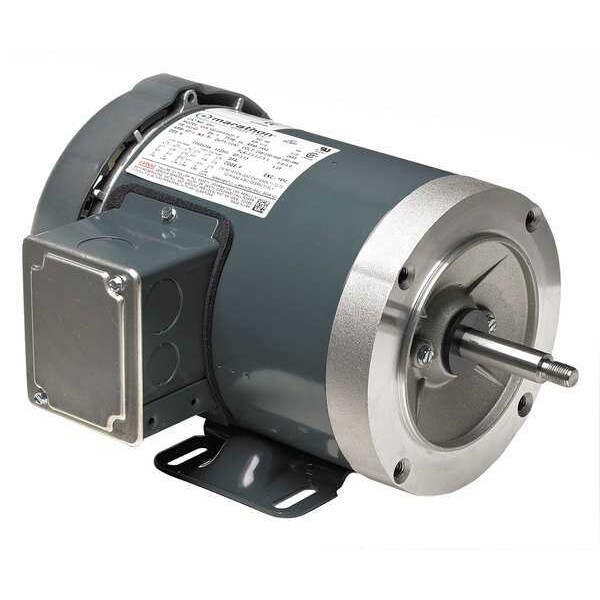

Marathon Mtr, 3 Ph, 1 HP, 3450,200-230/460V, 56J, TEFC 5K38RN117-G

Mtr, 3 Ph, 1 HP, 3450,200-230/460V, 56J, TEFC (Discontinued)

  • Mfr # 5K38RN117-G
  • Zoro # G3495274
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5K38RN117-G
Zoro #
G3495274
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
2 3/8 in
Shaft Dia.
5/8 in
Overall Length
12 7/8 in
Body Dia.
5.66 in

Details

Motor Bearings
Ball
Phase
3
Item
Jet Pump Motor
Hz
60/50
Motor Sub Application
Jet Pump
Motor Mounting Type
Face/Base
Motor Shaft Rotation
CW/CCW
Frame
56J
RPM Range
3001-3600
Ins. Class
B
Motor Mounting Position
Horizontal
Full Load Amps
3.2-3.0/1.5
Motor Design
3-Phase
Motor Application
Pump
HP
1
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Threaded
Voltage
200-230/460
Nameplate RPM
3450
Duty
Continuous
Voltage Compatibility
200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460
Shaft Material
Stainless Steel
Motor Service Factor
1.40
Motor Enclosure Design
Totally Enclosed Fan-Cooled

Description

Jet Pump Motor, 3-Phase, 1 HP, Nameplate RPM 3450, Voltage 200-230/460, 3 Phase, Frame 56J, Totally Enclosed Fan-Cooled, Full Load Amps 3.2-3.0/1.5, 60/50 Hz, Motor Mounting Type Face/Base, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.40, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Overall Length 12 7/8 in, Shaft Dia. 5/8 in, Shaft Length 2 3/8 in
