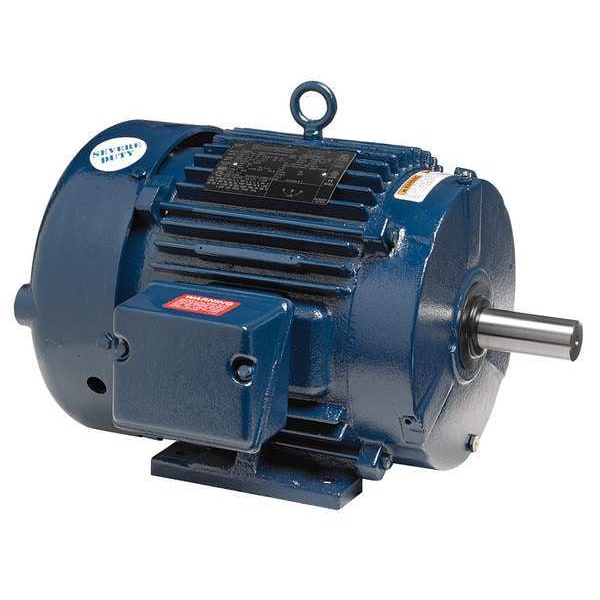

Severe Duty Mtr, 3-Ph, TENV, 1-1/2 HP
Mfr # 182TTTCD6576
Zoro # G5707703
product price: $1,084.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
Voltage
460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
182TTTCD6576
Zoro #
G5707703
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
12 13/16 in
Shaft Length
2 3/4 in
Shaft Dia.
1 1/8 in
Length Less Shaft
10 1/16 in
Lead Length
3" to 8"
Description
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1175 rpm, Frame 182T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200
