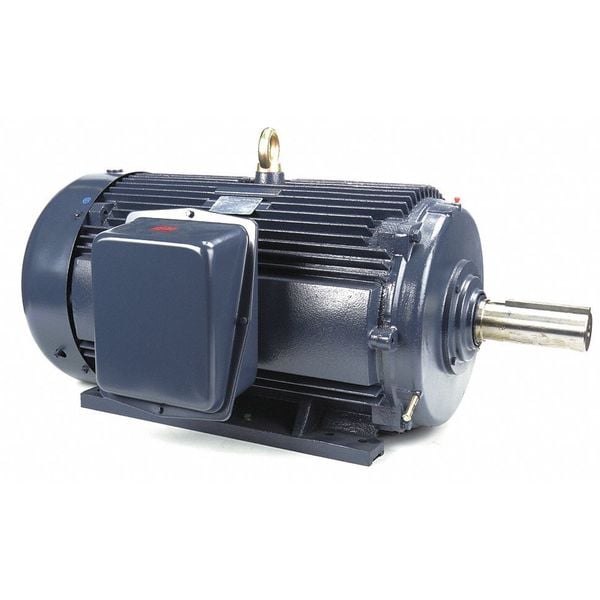

Three-Phase General Purpose Motor, 200 HP, 447/449T Frame, 460V AC Voltage, 1190 rpm Nameplate RPM

  • Mfr # 449TTFCD6088

  • Zoro # G9875345

product price:  $20,802.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
200
Nameplate RPM
1190 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
227.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
449TTFCD6088
Zoro #
G9875345
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
46 11/16 in
Overall Length
55 3/16 in
Shaft Dia.
3 3/8 in
Shaft Length
8 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
3 3/8 in
Frame Size
447-9T

Details

Item
General Purpose Motor
HP
200
Nameplate RPM
1190 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
227.0 A
Frame
447/449T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.8 %
Standards
CE Certified, CSA Certified, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Conduit Box
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
2,494 lb
Usable @ 208V
Not Usable at 208V
Part Winding Start Capable
Yes
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Capacitor Required
No
Inverter Rating
Inverter Rated
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Nameplate Voltage @ 50 Hz
200/400V AC
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Full Load Current @ 60 Hz
227.0 A
Product Type
General Purpose Motor
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
2,884 RPM
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
F
NEMA Design Class
B

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 200 HP, Nameplate RPM 1190 rpm, Frame 447/449T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 227.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1,101-1,200
