  6. Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM

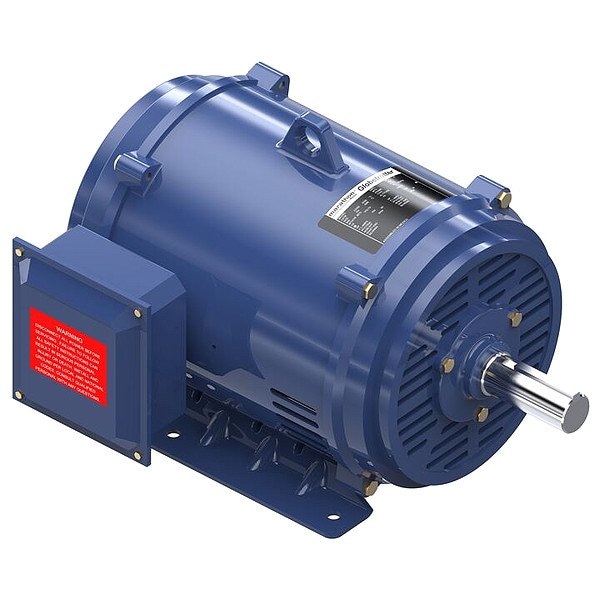

Marathon Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM 324TTDBD6070 - main

Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM

  • Mfr # 324TTDBD6070

  • Zoro # G2162380

product price:  $3,396.99
/ea
Item requires special delivery charges. A $160.00 per item surcharge will be applied.

Key Features

HP
40
Nameplate RPM
1780 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
95.0/47.5 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
324TTDBD6070
Zoro #
G2162380
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
25 1/8 in
Overall Length
30 3/8 in
Shaft Dia.
2 1/8 in
Shaft Length
5 1/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
40
Nameplate RPM
1780 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
95.0/47.5 A
Frame
324T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.8 %
Standards
CSA, UL
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
AEGIS SGR Bearing Protection Rings
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
No
Duty Cycle
Continuous
Usable @ 200V
No
RPM @ 50Hz
1780 rpm
Voltage @ 50Hz
230/460
HP @ 50Hz
40
Service Factor @ 50Hz
1.15
Full Load Amps @ 50Hz
95.0/47.5 A
Bearing Protection
AEGIS(R) Rings

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 1780 rpm, Frame 324T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 95.0/47.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800, CSA, UL
