Shop MARATHON

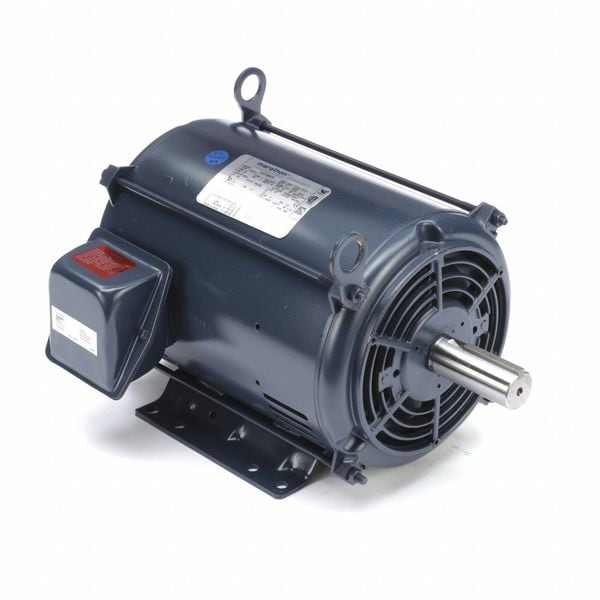

Three-Phase General Purpose Motor, 5 HP, 215T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM

  • Mfr # 215TTDBD6076

  • Zoro # G5743656

product price:  $1,057.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
5
Nameplate RPM
1180 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.8/6.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTDBD6076
Zoro #
G5743656
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/8 in
Overall Length
17 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Frame Size
215T
Shaft Diameter
1 3/8 in
Wire Rope Length
17 1/2 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1180 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.8/6.9 A
Frame
215T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Weight
138 lb
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Manufacturers Warranty
1 yr
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
13.8/6.9 A
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
NEMA Design Class
B
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Product Type
General Purpose Motor
Application
General Purpose
Nameplate Voltage @ 50 Hz
208-230/460V AC
Nameplate RPM @ 50 Hz
1,725 RPM
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1180 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.8/6.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
