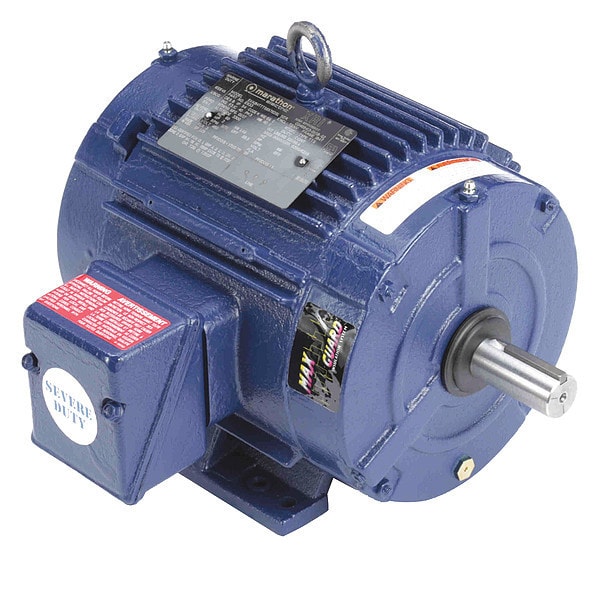

Three-Phase Severe Duty Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM
Mfr # 215TTFCD6807
Zoro # G7593580
product price:Â $1,406.91
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.
Key Features
HP
10
Nameplate RPM
3518 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.6/11.8 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215TTFCD6807
Zoro #
G7593580
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
16 1/4 in
Overall Length
19 5/8 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Description
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3518 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Listed
