Shop MARATHON

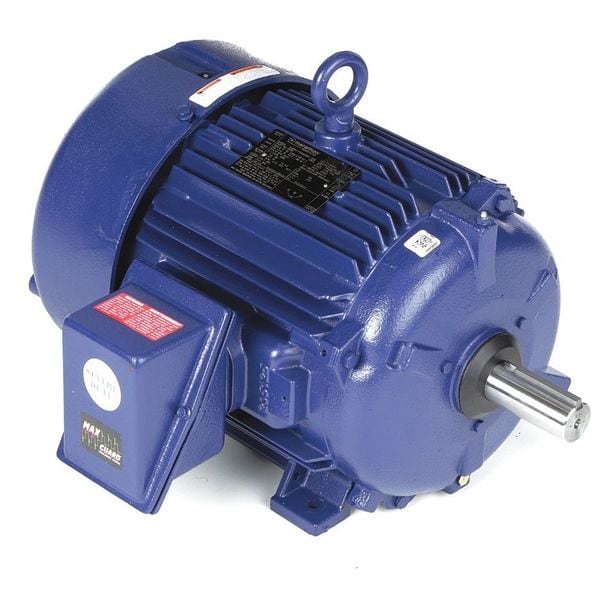

Three-Phase Severe Duty Motor, 15 HP, 254T Frame, 460V AC Voltage, 1772 rpm Nameplate RPM

  • Mfr # 254TTFCD6526

  • Zoro # G9943857

product price:
$
1,940.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

HP
15
Nameplate RPM
1772 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
254TTFCD6526
Zoro #
G9943857
UPC #
-
Country of Origin
Mexico
Item
Severe Duty Motor
HP
15
Nameplate RPM
1772 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.8 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.1 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Includes
Max Guard Insulation
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Weight
347 lb
Usable @ 200V
Not Usable at 200V
Temp. Code
T2B
Hazardous Location Class
1 C,D / 2 F,G
Insulation Class
H
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Severe Duty Motor
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
460V AC
NEMA Design Class
B
Frequency
60 Hz
Number of Speeds
1
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
3,575/2,965 RPM
Application
General Purpose
Full Load Current @ 60 Hz
18.8 A

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1772 rpm, Frame 254T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
