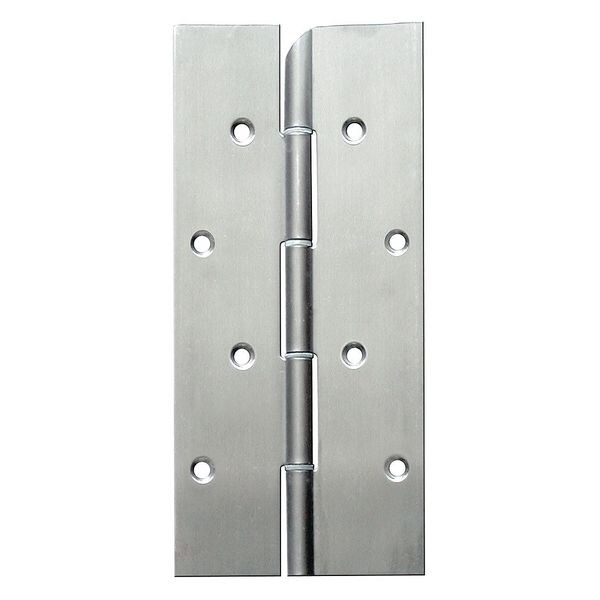

Door and Butt Hinge, 304 Stainless steel, Full Mortise Mounting, 4 1/2 in Leaf W x 79 in Leaf H
Mfr # FM3500-79
Zoro # G7886672
product price:Â $851.99
/ea
Free Shipping & Returns
Key Features
Door Leaf Height
79 in
Door Leaf Thickness
0.105 in
Door Leaf Width
4 1/2 in
Finish
Satin Stainless Steel
Holes per Leaf
21
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FM3500-79
Zoro #
G7886672
UPC #
-
Country of Origin
United States
Dimensions
Door Leaf Height
79 in
Door Leaf Thickness
0.105 in
Door Leaf Width
4 1/2 in
Pin Dia.
3/16 in
Required Door Thickness
1-3/4 in
Frame Leaf Thickness
0.105 in
Overall Knuckle Height
2 in
Frame Leaf Width
4 1/2 in
Frame Leaf Height
79 in
Pin Diameter
3/16 in
Door Thickness - Maximum
2 1/4 in
Door Thickness - Minimum
1 3/4 in
Description
Butt Hinge, 304 Stainless Steel, Satin Stainless Steel Finish, 900 lb Load Capacity, With Holes, 21 Holes per Leaf, Yes Ligature Resistant, 180 Degrees Range of Motion, Orientation Non Handed, 79 in Door Leaf Height, 79 in Frame Leaf Height, 4 1/2 in Door Leaf Width, 4 1/2 in Frame Leaf Width, 0.105 in Door Leaf Thickness, 0.105 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Mounting Included Hardware
