  6. Piano Hinge, Stainless Steel, Adjustable Mounting, 1 3/4 in Leaf W x 8 ft Leaf H, Satin

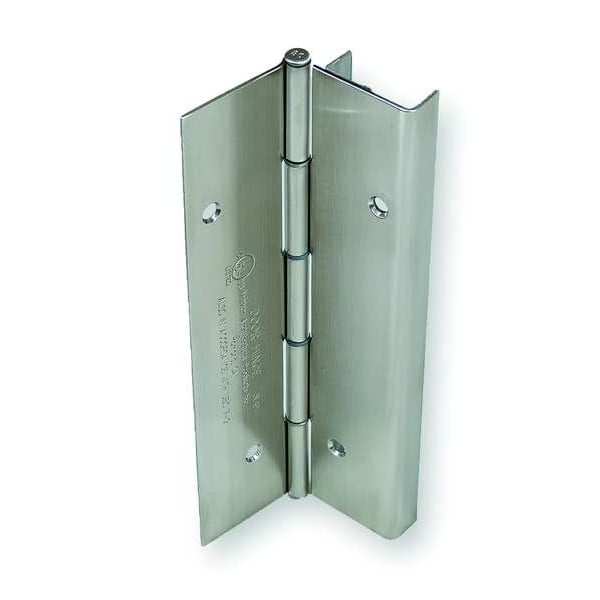

Markar Piano Hinge, Stainless Steel, Adjustable Mounting, 1 3/4 in Leaf W x 8 ft Leaf H, Satin HG305-002-630 - main

Piano Hinge, Stainless Steel, Adjustable Mounting, 1 3/4 in Leaf W x 8 ft Leaf H, Satin

  • Mfr # HG305-002-630

  • Zoro # G2434844

product price:  $649.99
/ea
Free Shipping & Returns

Key Features

Door Leaf Height
8 ft
Door Leaf Thickness
0.125 in
Door Leaf Width
1 3/4 in
Finish
Satin
Holes per Leaf
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HG305-002-630
Zoro #
G2434844
UPC #
-
Country of Origin
United States

Dimensions

Door Leaf Height
8 ft
Door Leaf Thickness
0.125 in
Door Leaf Width
1 3/4 in
Pin Dia.
1/4 in
Required Door Thickness
1-3/4 in
Overall Width
4 9/16 in
Frame Leaf Thickness
0.125 in
Length
8 ft
Frame Leaf Width
1 3/4 in
Overall Knuckle Height
1 in
Frame Leaf Height
8 ft
Height
96"
Width
1-11/16"
Pin Diameter
1/4 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
1 3/4 in
Hinge Length
10 in

Details

Finish
Satin
Holes per Leaf
2
Load Capacity
600 lb
Material
Stainless Steel
Mounting
Adjustable
Orientation
Non Handed
Range of Motion
90 Degrees
Features
Exterior Barrel Diameter 0.438 in (7/16 in), Fasteners Are Concealed When Door is Closed, Stainless Steel End Pins
Pin Material
Stainless Steel
Hardware
Included
Holes
With
Ligature Resistant
No
Item
Piano Hinge
Standards
ANSI/BHMA A156.26, ANSI/SDI 250.13 Certified
Pin Type
Nonremovable
Bearing Type
Split Nylon
UL Fire Rating
UL10C
Color
Natural
Hand Orientation
Non-Handed
Number of Holes per Leaf
2
Resistance Properties
Scratch-Resistant
ANSI/BHMA Finish
Satin Stainless Steel
Fire Rating
3 hr
Includes Hardware
Hardware Included
Range of Motion - Maximum
180 Degrees
Removable Pin
No

Description

Piano Hinge, Ligature Resistant No, Stainless Steel Material, 90 Degrees Range of Motion, Satin Finish, With Holes, 600 lb Load Capacity, Non Handed Orientation, 1 in Overall Knuckle Height, 8 ft Door Leaf Height, 8 ft Frame Leaf Height, 1 3/4 in Door Leaf Width, 1 3/4 in Frame Leaf Width, 0.125 in Door Leaf Thickness, 0.125 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Length 8 ft, Included Hardware, 2 Holes per Leaf, Full Mortise Mounting, 1/4 in Pin Dia.
