- MFR #
- 5BHA/32D
- Zoro #
- G4259325
- UPC #
- -
- Country of Origin
- United States
- Electrical/Mechanical
- Mechanical
- Lockset Handle Type
- Pull
- Mortise / Cylindrical
- Mortise
- Lockset Function
- Entrance
- Lockset Grade
- 1
- Style
- Standard Bow
- Lockset Finish
- Stainless Steel
- Keyway Type
- Schlage
- Key Type
- Keyed Alike
- Mortise/Cylindrical
- Mortise
- Cylinder Core Type
- Cylinder with Schlage "C" Keyway
- Handle Material
- Stainless Steel
- Number of Keys
- 2
- Strike Dim.
- 4-7/8 in
- ADA Compliant
- No
- Strike Type
- ASA
- Lockset Performance Strength
- Standard Duty
- Series
- 5BH
- Features
Auxiliary Deadlatch: 1/2 in Throw (Reversible), Case: Stamped Steel 3/32 in Thick, Deadbolt: Stainless Steel with Hardened Roll Pins, 1 in Throw, Hub Follower: Steel 1/8 in Thick, Hub Stop: Steel 1/8 in Thick, Hubs: Steel, 9/32 in on Diamond, 5/16 in on Square with Security Separator, Independent Exterior and Interior Lever Support Springs, Latch: Solid Stainless Steel with Antifriction Latch Lever, 3/4 in Throw (Reversible), Lever Support Springs: Lever Support Springs with 5/16 in Hubs
- Backset
- 2 3/4 in
- Lockset Fire Rating
- 3 hr
- Key Material
- Nickel Silver
- Location Type
- Behavioral Health, Detention Facility
- Standards
- BHMA, cULus Listed
- Number of Pins
- 6
- Ligature Resistant
- Yes

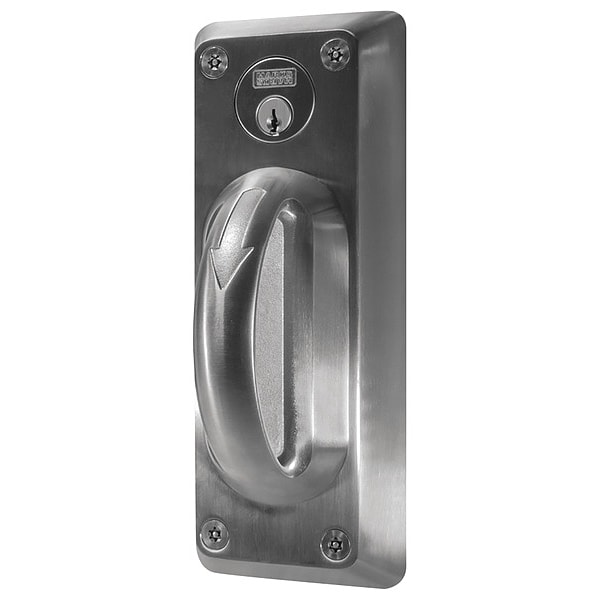

- Item
- Door Lockset
- Fire Rating - Door Hardware
- 3 hr
- Visual Indicator Message
- No Message
- Fire Rating
- 3 hr
- Application
- Commercial
- ANSI/BHMA Finish
- Satin Stainless Steel
- Lockset Style
- Standard Bow
- Latch Bolt/Dead Bolt
- Latch Bolt
- Lockset Function ANSI Code
- F08; F10
- Knob/Handle Material
- Stainless Steel
- Ligature-Resistant
- Ligature-Resistant
- ANSI Grade
- 1
- Performance Grade
- 2
- Lockset Type
- Mechanical
- Hand Orientation
- Non-Handed
