  13. Lever Lockset, Mechanical, Passage, Grd. 1

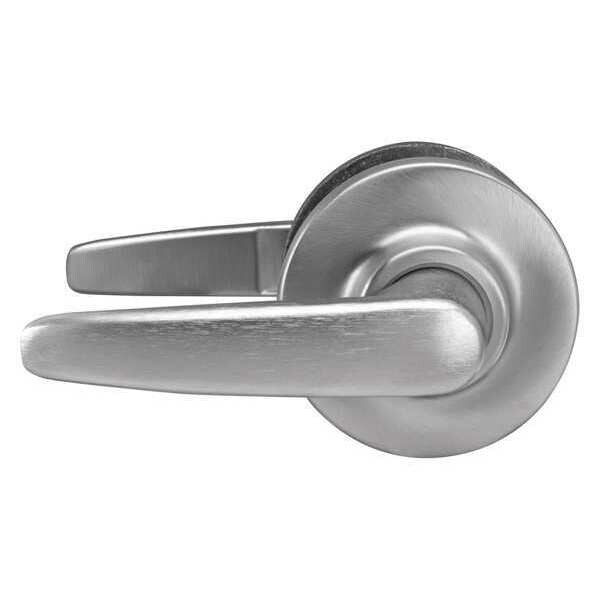

Marks Usa Lever Lockset, Mechanical, Passage, Grd. 1 495N/26D - main

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # 495N/26D

  • Zoro # G4573810

product price: $215.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
Marks C
Location Type
Healthcare, Institutional
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
495N/26D
Zoro #
G4573810
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-5/8 in to 1-7/8 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 5/8 in
Door Thickness - Maximum
1 7/8 in
Strike Plate Height
4 7/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
Marks C
Location Type
Healthcare, Institutional
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
495
Style
495 Straight
Finish
Satin Chrome
ADA Compliant
Yes
Lockset Finish
Satin Chrome
Strike Type
ASA, Curved Lip
Number of Keys
0
Item
Door Lockset
Strike Dim.
1-1/4 in x 4-7/8 in
Ligature Resistant
No
Handle Material
Zinc
Lockset Fire Rating
3 hr
Mortise / Cylindrical
Cylindrical
Lockset Performance Strength
Heavy Duty
Standards
BHMA, cULus Listed
Fire Rated
3 hr.
Keying
Non Keyed
Grade
1
Features
Lifetime Mechanical Warranty
Application
Institutional
Visual Indicator Message
No Message
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Function ANSI Code
F75
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Locking/Unlocking Access - Inside
Not Lockable
Fire Rating
3 hr
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
Lockset Style
495 Straight
Knob/Handle Material
Zinc
Locking/Unlocking Access - Outside
Not Lockable
Includes Core
Core Not Included
Latch Bolt/Dead Bolt
Spring Latch
ANSI Grade
1

Description

Lever Lockset,Mechanical,Passage,Grd. 1
