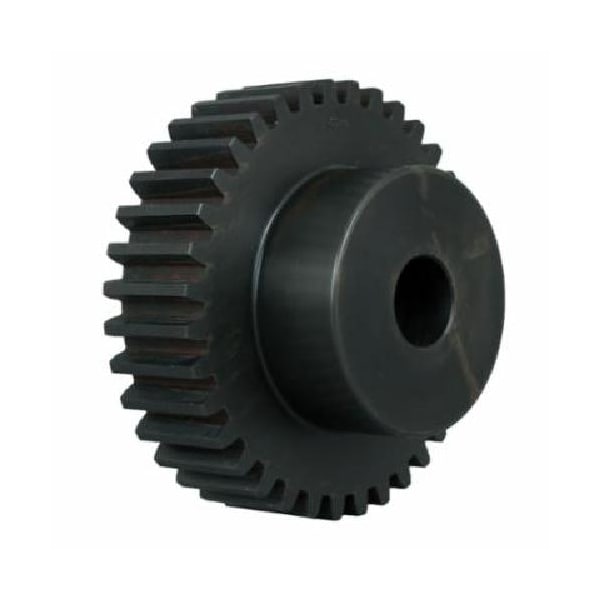

Gear Spur 20 Deg Steel, TS1248
Mfr # TS1248
Zoro # G3298746
product price: $134.99
/ea
Free Shipping & Returns
Key Features
Pitch
12
Pitch Dia. (In.)
4
Face Width (In.)
1
Outside Dia. (In.)
4.166
Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TS1248
Zoro #
G3298746
UPC #
697950263229
Country of Origin
United States
Dimensions
Pitch Dia. (In.)
4
Face Width (In.)
1
Outside Dia. (In.)
4.166
Hub Dia. (In.)
3
Storage Width
4.166
Set Screw Size
NONE
Length through Bore
1.875
Storage Length
4.166
Storage Height
1.875
Details
Pitch
12
Material
Steel
Keyway
NONE
Weight
4.99
Pressure Angle (Deg.)
20
Hub Projection (In.)
0.875
Number Of Teeth
48
Enlarged OD With Special Tooth Form
NO
Min. Bore
0.875
Class
6
Hub Style
B
Max. Bore
1.875
Gear Type
B
Bore Type
Reboreable
Description
This MARTIN SPROCKET & GEAR brand Gear Spur has a pitch of 12, a pitch diameter of 4 inches, a face width of 1 inch, an outside diameter of 4.166 inches, and is made of steel. It has no keyway, a hub diameter of 3 inches, a weight of 4.99, a pressure angle of 20 degrees, a hub projection of 0.875 inches, 48 teeth, a storage width of 4.166 inches, no set screw size, a length through bore of 1.875 inches, no enlarged OD with special tooth form, a minimum bore of 0.875 inches, a hub style of B, a storage length of 4.166 inches, a storage height of 1.875 inches, a maximum bore of 1.875 inches, a gear type of B, a bore type of reboreable, and a storage height of 1.875 inches.
