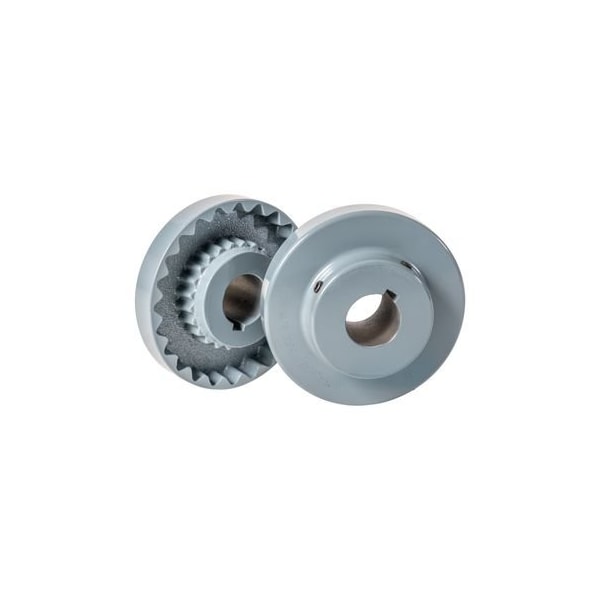

CouplngFlnge, 1-1/16"BoreDia, 6000RPMaxSpd
Mfr # 6S-1-1/16
Zoro # G922903615
product price:Â
$
41.55
/ea
Key Features
Screw Thread Size
5/16"-18
Hub Body Length
25/32 in
Coupling Size
6
Included Screws
(2) Set Screw
Hub Material Finish
Gray Paint
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 6S-1-1/16
- Zoro #
- G922903615
- UPC #
- 806372135087
- Country of Origin
- China
- Included Screws
- (2) Set Screw
- Hub Material Finish
- Gray Paint
- Weight
- 2.66 lb
- System of Measurement
- Inch
- Features
- Exceptional Torsional Flexibility, Maintenance Free, Quick and Easy Installation
- Item
- Coupling Flange
- Bushing Bore Range
- 3/4 to 1 7/8 in
- Hub Projection
- 14/25 in
- Hub Material Grade
- HT200
- Hub Type
- Flange Hub
- Maximum Speed
- 6,000 RPM
- Bore Type
- Round Keyed
- Number of Locking Screws
- 2
Description
Coupling Flange, Coupling Size 6, Maximum Speed 6,000 RPM, Outside Diameter 4 in, Bore Type Round Keyed, Hub Diameter 2 1/2 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter 1 1/16 in, Length through Bore 1 5/8 in, System of Measurement Inch, Hub Body Length 25/32 in, Hub Type Flange Hub, Bushing Bore Range 3/4 to 1 7/8 in, Coupling Overall Length 3 9/16 in, Features Exceptional Torsional Flexibility, Maintenance Free, Quick and Easy Installation
