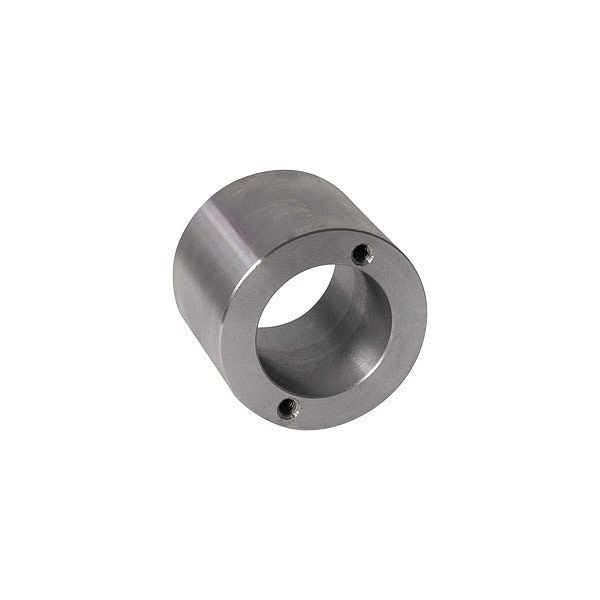

Solid Coupling Hubs
Mfr # BCS-H
Zoro # G822903692
product price:Â
$
55.15
/ea
Key Features
Maximum Bore Diameter
1 1/2 in
Bore Diameter 1
1 1/2 in
Different Bore Sizes
Yes
Maximum Speed
12,214 RPM
Bore Diameter 2
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BCS-H
- Zoro #
- G822903692
- UPC #
- 806372054159
- Country of Origin
- China
Dimensions
- Maximum Bore Diameter
- 1 1/2 in
- Bore Diameter 1
- 1 1/2 in
- Different Bore Sizes
- Yes
- Bore Diameter 2
- 3/8 in
- Sleeve Length
- 2 in
- Wire Rope Length
- 3 in
- For Bushing Size
- H
- Clearance Diameter
- 2.5 in
- Coupling Outside Diameter
- 2 1/2 in
- Minimum Bore Diameter
- 3/8 in
- Overall Length
- 3 in
- Length
- 3 in
Details
- Maximum Speed
- 12,214 RPM
- Shaft Tolerance
- +.0003/+.0019 in
- Shaft Locking Type
- Clamp On
- Bore Type
- Round
- Coupling Construction
- One-Piece
- System of Measurement
- Inch
- Maximum Operating Temperature
- 800 Degrees F
- Item
- Solid Coupling Hub
- Minimum Operating Temperature
- -20 Degrees F
- Maximum Torque
- 1,700 in-lb
- Coupling Material
- Steel
Description
Solid Coupling Hubs
