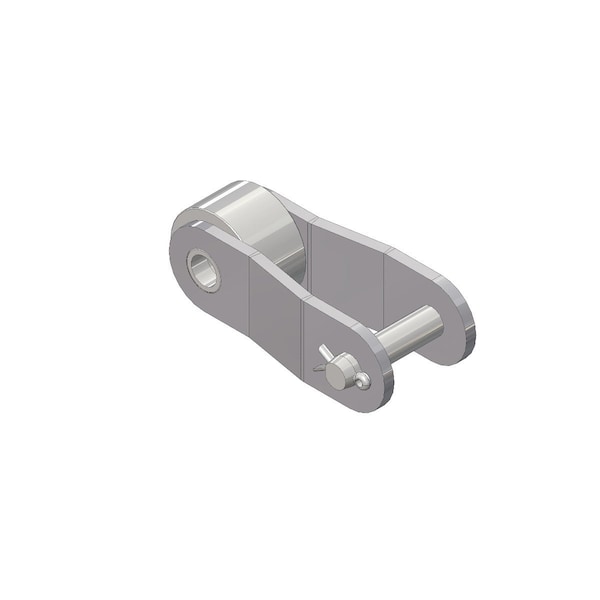

C2082H Ol Cp ASME/ANSI Double Pit Roller Chain Large Roller 2" Pit, PK5 (Discontinued)

SENQCIA Hi-Max Double Pitch offset Links with large rollers are manufactured in accordance with the ASME/ANSI B29.4 American roller chain standard. Offset links are supplied with “flatted” connecting pins and a split cotter for ease of assembly in the field. These special purpose links allow the user to make an endless strand of roller chain from an odd number of pitches. They are also used to reduce the length of a strand by one pitch when normal chain elongation has created excess catenary sag on a roller chain drive. Care should be taken when utilizing this part as the offset link has significantly less load carrying capacity than the base chain itself. Each offset link is individually packaged in a sealed plastic bag.
