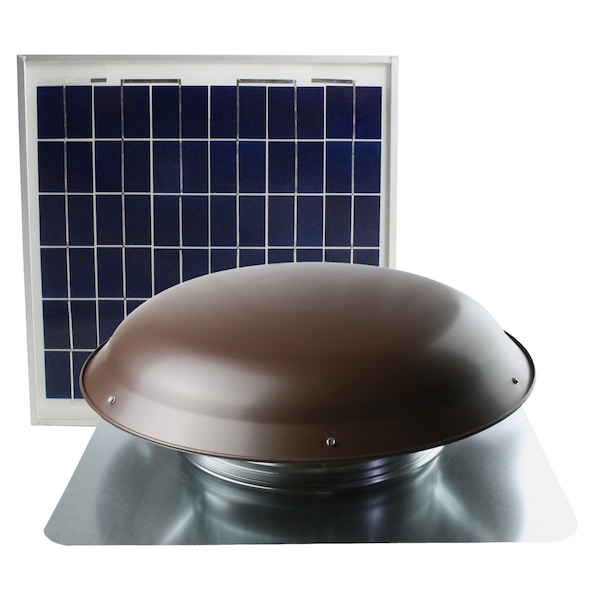

Maxx Air 433 CFM Solar Powered Roof Mount Power Attic Ventilator with Panel in Brown CXSOLRFBRNUPS - main

433 CFM Solar Powered Roof Mount Power Attic Ventilator with Panel in Brown

  • Mfr # CXSOLRFBRNUPS

  • Zoro # G2453604

product price: $403.99
/ea
Free Shipping & Returns

Key Features

Voltage
18 V
Control Method - Roof Ventilators
Manual
Max. Attic Area (Sq.-Ft.)
1,500 sq. ft.
Item - Roof Ventilators
Attic Ventilator
Hz
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CXSOLRFBRNUPS
Zoro #
G2453604
UPC #
047242543292
Country of Origin
Multiple

Dimensions

Dome Dia. (In.)
26 in.
Overall Length
25 3/8 in
Overall Width
25 3/8 in
Overall Height
9 in
Dome Diameter
25 in
Overall Diameter
25 in
Rough Opening Diameter
14 1/2 in

Details

Voltage
18 V
Control Method - Roof Ventilators
Manual
Max. Attic Area (Sq.-Ft.)
1,500 sq. ft.
Item - Roof Ventilators
Attic Ventilator
Hz
60
Watts
15 W Output
RPM
Variable Depending on Sun Exposure
CFM @ 0.000-In. SP
433 CFM
CFM @ 0.030-In. SP
1000
Free Air Intake Required (Sq.-Ft.)
480 sq. in.
Opening Required (In.)
14 1/2 in
Dome Material
Steel
Color
Brown
Type
Direct
Green Environmental Attribute
Product is Solely Powered by Solar Energy
Item
Attic Exhaust Fan
Includes
Solar Attic Fan, Solar Panel
Power Method - Roof Ventilators
Solar
Mounting Location - Roof Ventilators
Roof
Power Type
Solar
Included with Ventilator
Attic Ventilator With Solar panel
Minimum Airflow
1,080 cfm
Base Material
Galvanized Steel
For High-Static Pressure Applications
No
Motor Type
Thermally Protected DC Motor
Housing Color
Brown
Dome Color
Brown
Wattage
12.6 W
Rough Opening Shape
Round
Power Source
Solar
Dome Shape
Round
Maximum Attic Area
1,600 sq ft
Maximum Airflow
1,080 cfm
Airflow @ Static Pressure
1000 cfm @ 0.030 in
Includes Thermostat
No
Current
2.6 A
Includes Humidistat
No
Nameplate Voltage
18V DC
Housing Material
Steel
Fire Safety Shut-Off
No
Exhaust Airflow @ 0.000 in SP
1,000 cfm
Motor Horsepower
1/10 hp
Airflow @ 0.000 in SP
1,000 cfm
Blade Material
Aluminum
High-Efficiency Motor
Yes
Housing Finish
Galvanized
Control Type
Manual
Includes Shutter
No
Includes Motor
Yes

Description

Attic Exhaust Fan, Control Type Manual, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 1,000 cfm, Base Material Galvanized Steel, Fire Safety Shut-Off No, High-Efficiency Motor Yes, Housing Material Steel, Includes Humidistat No, Includes Shutter No, Includes Thermostat No, Maximum Attic Area 1,600 sq ft, Motor Horsepower 1/10 hp, Mounting Location Roof, Nameplate Voltage 18V DC, Overall Diameter 25 in, Overall Height 9 in, Overall Length 25 3/8 in, Overall Width 25 3/8 in
