  9. 433 CFM Solar Powered Roof Mount Power Attic Ventilator with Panel in Weathered Gray

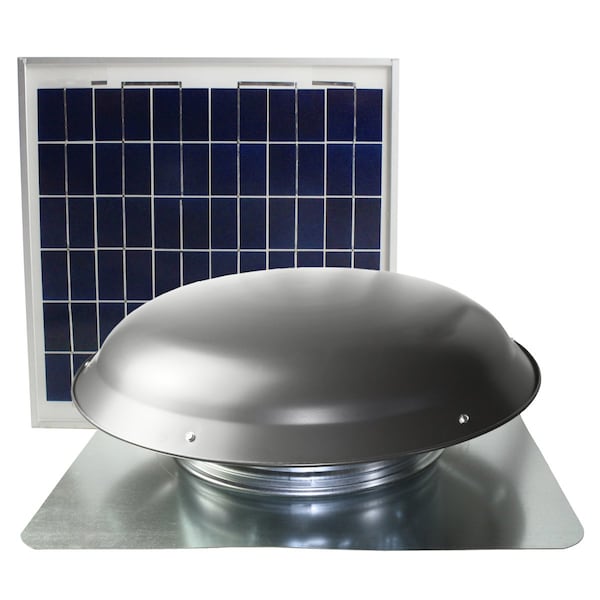

Maxx Air 433 CFM Solar Powered Roof Mount Power Attic Ventilator with Panel in Weathered Gray CXSOLRWGUPS - main

433 CFM Solar Powered Roof Mount Power Attic Ventilator with Panel in Weathered Gray

  • Mfr # CXSOLRWGUPS

  • Zoro # G3321717

product price: $403.99
/ea
Free Shipping & Returns

Key Features

Voltage
18 V
Control Method - Roof Ventilators
Manual
Max. Attic Area (Sq.-Ft.)
1,500 sq. ft.
Item - Roof Ventilators
Attic Ventilator
Hz
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CXSOLRWGUPS
Zoro #
G3321717
UPC #
047242543254
Country of Origin
Multiple

Dimensions

Dome Dia. (In.)
26 in.
Overall Height
9 in
Overall Width
25 3/8 in
Overall Length
25 3/8 in
Dome Diameter
25 in
Rough Opening Diameter
14 1/2 in
Overall Diameter
25 in

Details

Voltage
18 V
Control Method - Roof Ventilators
Manual
Max. Attic Area (Sq.-Ft.)
1,500 sq. ft.
Item - Roof Ventilators
Attic Ventilator
Hz
60
Watts
15 W Output
RPM
Variable Depending on Sun Exposure
CFM @ 0.000-In. SP
433 CFM
CFM @ 0.030-In. SP
1000
Free Air Intake Required (Sq.-Ft.)
480 sq. in.
Opening Required (In.)
14 1/2 in
Dome Material
Steel
Color
Slightly yellow to green
Mounting Location - Roof Ventilators
Roof
Item
Attic Exhaust Fan
Type
Direct
Includes
Solar Attic Fan, Solar Panel
Green Environmental Attribute
Product is Solely Powered by Solar Energy
Power Method - Roof Ventilators
Solar
Included with Ventilator
Attic Ventilator With Solar panel
Power Type
Solar
Base Material
Galvanized Steel
Airflow @ 0.000 in SP
1,000 cfm
Includes Thermostat
No
Dome Color
Weathered Gray
Housing Color
Weathered Gray
Control Type
Manual
Power Source
Solar
Includes Motor
Yes
High-Efficiency Motor
Yes
Maximum Attic Area
1,600 sq ft
Minimum Airflow
1,080 cfm
Motor Horsepower
1/10 hp
Nameplate Voltage
18V DC
For High-Static Pressure Applications
No
Wattage
12.6 W
Blade Material
Aluminum
Airflow @ Static Pressure
1000 cfm @ 0.030 in
Maximum Airflow
1,080 cfm
Motor Type
Thermally Protected DC Motor
Dome Shape
Round
Rough Opening Shape
Round
Fire Safety Shut-Off
No
Current
2.6 A
Housing Finish
Galvanized
Includes Shutter
No
Exhaust Airflow @ 0.000 in SP
1,000 cfm
Housing Material
Steel
Includes Humidistat
No

Description

Attic Exhaust Fan, Control Type Manual, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 1,000 cfm, Base Material Galvanized Steel, Fire Safety Shut-Off No, High-Efficiency Motor Yes, Housing Material Steel, Includes Humidistat No, Includes Shutter No, Includes Thermostat No, Maximum Attic Area 1,600 sq ft, Motor Horsepower 1/10 hp, Mounting Location Roof, Nameplate Voltage 18V DC, Overall Diameter 25 in, Overall Height 9 in, Overall Length 25 3/8 in, Overall Width 25 3/8 in
