  9. Flow Switch, 1in with 2-Speed T Switches

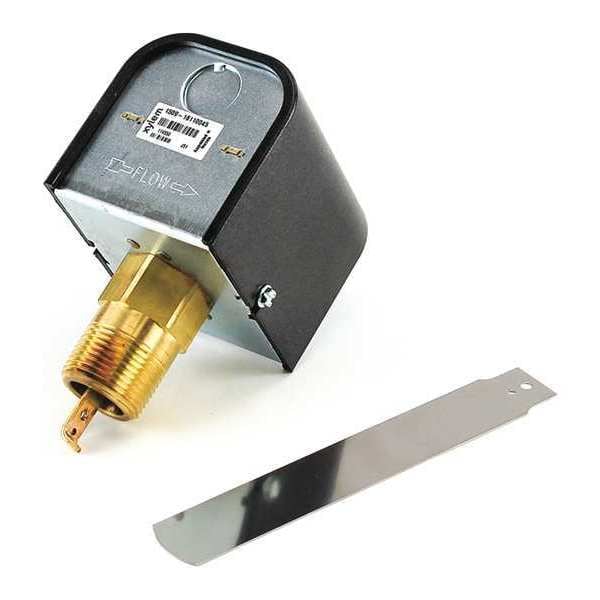

Mcdonnell & Miller Flow Switch, 1in with 2-Speed T Switches FS4-3D - main

Flow Switch, 1in with 2-Speed T Switches

  • Mfr # FS4-3D

  • Zoro # G2493255

product price: $483.99
/ea
Free Shipping & Returns

Key Features

For Use With
Air Conditioning; Hot Water Space Heating Systems; Hot Water Supply Systems; Pump Systems; Water Cooled Equipment; Blending or Additive Systems; Liquid Transfer Systems; Fire Sprinkler Systems; Water Treatment Systems; Swimming Pool Chlorination; Industrial Laser Coolant System
Voltage
120/240VAC
Includes
SPDT Switches
Features
Fluid Temperature 32F to 300F; Maximum pressure
Phase
1 and 3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FS4-3D
Zoro #
G2493255
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
3.4 in
Overall Height
8.4 in
Overall Width
3 in
Connection Size
1 in
For Pipe Size
1 in

Details

Item
Flow Switch, 1" with 2-Speed T Switches
For Use With
Air Conditioning; Hot Water Space Heating Systems; Hot Water Supply Systems; Pump Systems; Water Cooled Equipment; Blending or Additive Systems; Liquid Transfer Systems; Fire Sprinkler Systems; Water Treatment Systems; Swimming Pool Chlorination; Industrial Laser Coolant System
Voltage
120/240VAC
Includes
SPDT Switches
Features
Fluid Temperature 32F to 300F; Maximum pressure
Phase
1 and 3
Standards
cULus Approved
Switch Type
SPDT
Media Temperature - Minimum
32 Degrees F
Contact Rating (AC)
22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)
Set Point Configuration
Adjustable
Flow Switch Type
Paddle
Ambient Temperature - Minimum
32 Degrees F
Media Temperature - Maximum
300 Degrees F
Wetted Material
Brass, Stainless Steel
Flow Rate - Minimum
6 gpm
Connection Type
NPT
Flow Rate - Maximum
10.2 gpm

Description

Flow Switch, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 10.2 gpm, Flow Rate - Minimum 6 gpm, Flow Switch Type Paddle, For Pipe Size 1 in, Media Temperature - Maximum 300 Degrees F, Media Temperature - Minimum 32 Degrees F, Overall Height 8.4 in, Overall Length 3.4 in, Overall Width 3 in
