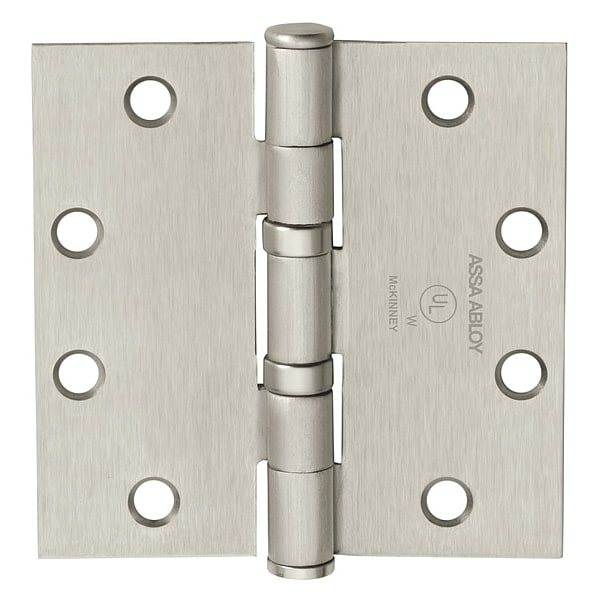

Hinge, Screw-On Mounting, Ball Bearing
- Mfr # 4 1/2X4 1/2 TA2714 15
- Zoro # G4565428
product price:Â
$
16.99
/ea
Key Features
Material
Steel
Finish
Satin Nickel
Holes per Leaf
4
Ligature Resistant
No
Door Leaf Height
4 1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 4 1/2X4 1/2 TA2714 15
- Zoro #
- G4565428
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Butt Hinge
- Material
- Steel
- Finish
- Satin Nickel
- Holes per Leaf
- 4
- Ligature Resistant
- No
- Bearing Type
- Oil Impregnated
- Corners
- Square
- Mounting
- Screw-On
- Pin Type
- Barrel
- Green Certification or Other Recognition
- Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative, Declare
- Corner Type
- Square
- Mounting Style
- Full Mortise
- Resistance Properties
- Vandal-Resistant
- Number of Holes per Leaf
- 4
- ANSI/BHMA Finish
- Satin Nickel-Plated, Clear Coated
- Standards
- ANSI/BHMA A156.1, NFPA 80, UL Listed
- Features
- For Flush Door/Frame/Wall Applications
- Hand Orientation
- Non-Handed
- Load Capacity
- 250 lb
- Shell Material
- Steel
- Traction Material
- Steel
Dimensions
- Door Leaf Height
- 4 1/2 in
- Frame Leaf Height
- 4 1/2 in
- Door Leaf Width
- 4 1/2 in
- Frame Leaf Width
- 1 15/16 in
- Door Leaf Thickness
- 0.134 in
- Frame Leaf Thickness
- 0.134 in
- Pin Dia.
- 0.31
- Leaf Thickness
- 0.19 in
- Width
- 4 1/2 in
- Height
- 4 1/2 in
- Pin Diameter
- 5/8 in
- Overall Width
- 4 1/2 in
- Door Thickness - Minimum
- 1 3/4 in
- Fits Chest Size
- For Flush Door/Frame/Wall Applications
Description
Butt Hinge, Steel, Satin Nickel Finish, 250 lb Load Capacity, 4 Holes per Leaf, No Ligature Resistant, 4 1/2 in Door Leaf Height, 4 1/2 in Frame Leaf Height, 4 1/2 in Door Leaf Width, 1 15/16 in Frame Leaf Width, 0.134 in Door Leaf Thickness, 0.134 in Frame Leaf Thickness, Oil Impregnated Bearing Type, Square Corners, Features For Flush Door/Frame/Wall Applications
