  6. 5" X 1-1/4" Non-Marking Elastimer Hi-Temp Rigid Caster, No Brake, Loads Up To 250 lb

This item is Discontinued.

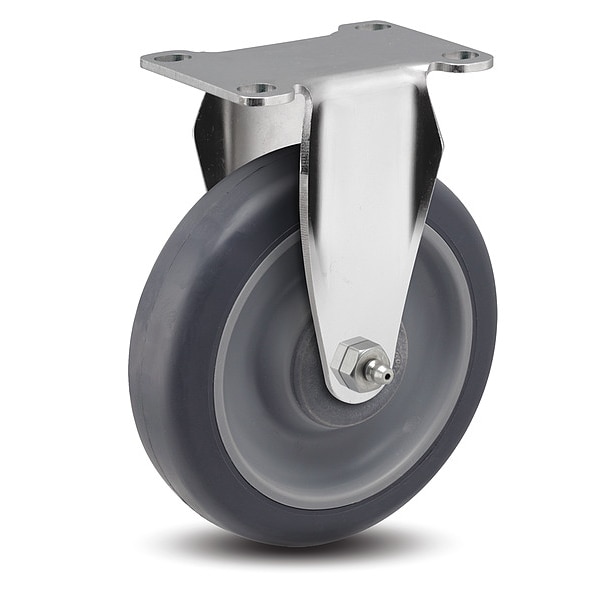

Medcaster 5" X 1-1/4" Non-Marking Elastimer Hi-Temp Rigid Caster, No Brake, Loads Up To 250 lb AC05HSP125RGTP01

5" X 1-1/4" Non-Marking Elastimer Hi-Temp Rigid Caster, No Brake, Loads Up To 250 lb (Discontinued)

  • Mfr # AC05HSP125RGTP01
  • Zoro # G7810208
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
AC05HSP125RGTP01
Zoro #
G7810208
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
32MM
Mounting Height
164MM
Mounting Plate Size
2-1/2 in X 3-5/8 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
None- Rigid Caster

Details

Item
Autoclave Cart Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber Hi-Temp Antimicrobial
Caster Brake Type
No Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Grey
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in X 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in X 2-13/16 in
Caster Product Group
Rigid Caster
Wheel Core Material
Polyolefin Hi-Temp
Series
AC
Mounting Plate Bolt Hole Pattern
C
Swivel Lock Type
No Lock Included
Application
Animal Cages, Case Carts, Lab Equipment, Pharma Equipment, Surgical Tables
Wheel/Tread Hardness Rating
Soft
Frame Finish
Polished
Wheel/Tread Hardness
70 (+/-5)
Frame Color
Silver
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Operating Temperature Range
Up to 280°F
Load Capacity - Maximum
300 lb

Description

Rigid, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Elastomer, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
