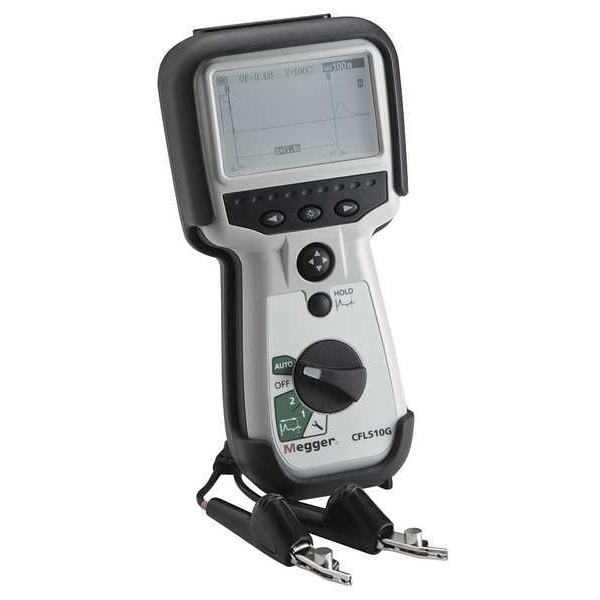

Megger Cable Fault Locater, 0-15,000 CFL510G - main

Cable Fault Locater, 0-15,000

  • Mfr # CFL510G

  • Zoro # G4655201

product price: $3,270.99
/ea
Free Shipping & Returns

Key Features

Display
Backlight LCD
Accuracy (%)
+/- 1
Impedance
25,50,75 and 100 Ohms
Includes
Bed of Nails Test Leads, Hard Case, Miniature Clip Leads, Socket/BNC Connector
Connector Type
4 mm Banana Plugs, BNC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CFL510G
Zoro #
G4655201
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA
Manufacturer Warranty Length
3 yr
Maximum Cable Length
15,000 ft

Details

Item
Cable Fault Locater
Display
Backlight LCD
Accuracy (%)
+/- 1
Impedance
25,50,75 and 100 Ohms
Includes
Bed of Nails Test Leads, Hard Case, Miniature Clip Leads, Socket/BNC Connector
Connector Type
4 mm Banana Plugs, BNC
Special Features
Dual cursers,Auto Setup,Unique Trace Hold Feature
Calibration Certificate
Not Included
Output Amplitude
5 V
Enclosure Rating
IP54
Auto Shutoff
Yes
Powered By
5 AA Batteries
Resolution
0.1M
Pulse Duration
From 2 nS
Velocity Factor
Variable
Measurement Range (M)
0-5000
Data Safe Monitor
No
Waterproof
No
Product Type
Time Domain Reflectometer
Port Number Display
No
Alert Type
Digital Display
Compatible Cable Type
Twisted Pair
Fault Location Pulse Duration
2 nsec
Includes Batteries
Yes
Display Screen Type
LCD
Data Logger
No
Number of Batteries Required
5
IP Rating
IP54
Maximum Impedance Measured
100 ohm
Testing Functions
Cable Speed Qualification, Distance to Fault, Impedance Detection
CAT Safety Rating
CAT IV 150V
Operating Voltage
150 V
Voltage
150 V

Description

Cable Fault Locater, CAT Safety Rating CAT IV 150V, Testing Functions Cable Speed Qualification, Distance to Fault, Impedance Detection, Adapters Included Not Applicable, Connector Type 4 mm Banana Plugs, BNC, Data Safe Monitor No, Display Screen Type LCD, Includes Bed of Nails Test Leads, Hard Case, Miniature Clip Leads, Socket/BNC Connector, Maximum Cable Length 15,000 ft, Fault Location Pulse Duration 2 nsec, Wire Mapping Detections Not Applicable, Alert Type Digital Display
