Shop MEGGER

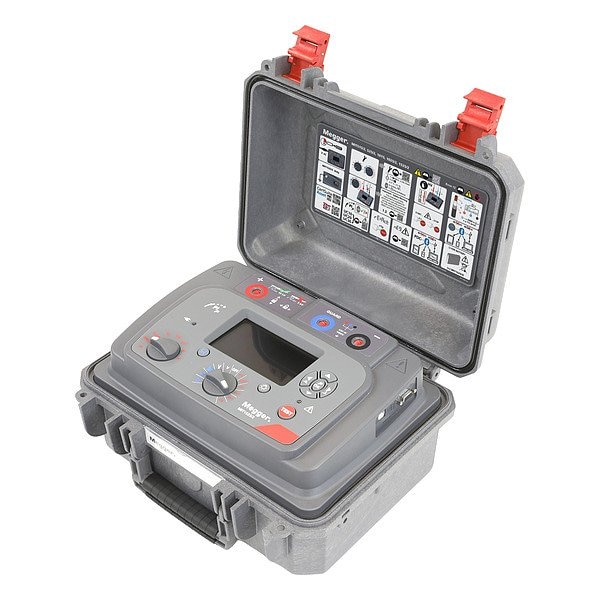

InsulationResistTester, Briefcase, 7.1"H

  • Mfr # MIT1025/2

  • Zoro # G622582523

product price:  $9,341.99
/ea
Free Shipping & Returns

Key Features

Power Source
AC Adapter, Battery
Includes
Leads with Insulated Clips, Power Lead, Remote, USB Cable
USB Data Download Included
Yes
Maximum Operating Temperature
122 Degrees F
Maximum AC Current Measured
6 mA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MIT1025/2
Zoro #
G622582523
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturer Warranty Length
2 yr
Tool Length
12.4 in
Tool Width
11.2 in
Tool Height
7.1 in
Test Lead Length
9 ft

Details

Item
Insulation Resistance Tester
Power Source
AC Adapter, Battery
Includes
Leads with Insulated Clips, Power Lead, Remote, USB Cable
USB Data Download Included
Yes
Maximum Operating Temperature
122 Degrees F
Maximum AC Current Measured
6 mA
Greater Than 30V Warning
Yes
Test Voltage
10,000V DC, 100V DC
Minimum DC Current Measured
0.01 nA
Data Output Type
Bluetooth, USB
Insulation Resistance Resolution
10 kiloohm to 20 teraohm @ 10 kV, 10 kiloohm to 30 teraohm @ 15 kV, 11 kiloohm to 15 teraohm @ 5 kV
Test Current
0.01 nA to 6 mA
Resistance Accuracy
+/-5%, see ds for ranges
Maximum Insulation Resistance
10 gigohm
Includes Software
Yes
Standards
IEC 62133:2006
Testing Functions
AC Voltage, DC Voltage, Frequency, Insulation Resistance
Remote Test Probe Included
No
Timed Ramp Voltage Test
Yes
Live Circuit Voltage Measurement - Minimum
30 V AC/DC
Minimum Capacitance Measured
10 nF
Display Type
Digital
CAT Safety Rating
CAT IV 1000V
Display Screen Type
LCD with Backlight
Capacitance Auto Discharge
Yes
Insulation Limit Alarm
Yes
Auto Ranging
Yes
Operating Voltage
120V AC
IP Rating
IP40, IP65
Minimum AC Current Measured
0.01 nA
Data Logger
Yes
Minimum Operating Temperature
-4 Degrees F
Alert Type
Digital Display, Audible
Maximum DC Voltage Measured
660 V
Calibration Certificate Included
Traceable without Data
Digital Memory Capacity
5.5 hr Logging @ 5 sec Intervals
Minimum AC Voltage Measured
30 V
Dustproof
Yes
Instrument Style
Briefcase
Features
Lid Pouch, Noise Immunity, Remote Operation, Voltage Warnings
Installation Tester Socket Region
EU, US
Backlit Digital Display
Yes
Minimum Insulation Resistance
100 kiloohm
Live Circuit Voltage Measurement - Maximum
660 V AC/DC
Minimum DC Voltage Measured
30 V
Pass/Fail Selection Limits
No
Leakage Current Range
0.01 nA to 6 mA
Auto Power Off
Yes
Number of Batteries Required
2
Maximum AC Voltage Measured
660 V
Low Resistance Range
10 kiloohm to 15 teraohm @ 5 kV; 10 kiloohm to 20 teraohm @ 10 kV; 10 kiloohm to 30 teraohm @ 15 kV
Maximum Capacitance Measured
25 uF
Maximum DC Current Measured
6 mA
Waterproof
Yes
PI/DAR Testing
Yes

Description

Insulation Resistance Tester, Backlit Digital Display Yes, Bluetooth Compatible Yes, CAT Safety Rating CAT IV 1000V, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning Yes, Includes Leads with Insulated Clips, Power Lead, Remote, USB Cable, Insulation Limit Alarm Yes, Maximum Insulation Resistance 10 gigohm, Minimum Insulation Resistance 100 kiloohm, PI/DAR Testing Yes, Pass/Fail Selection Limits No, Power Source AC Adapter, Battery

Restrictions

Hazardous material
