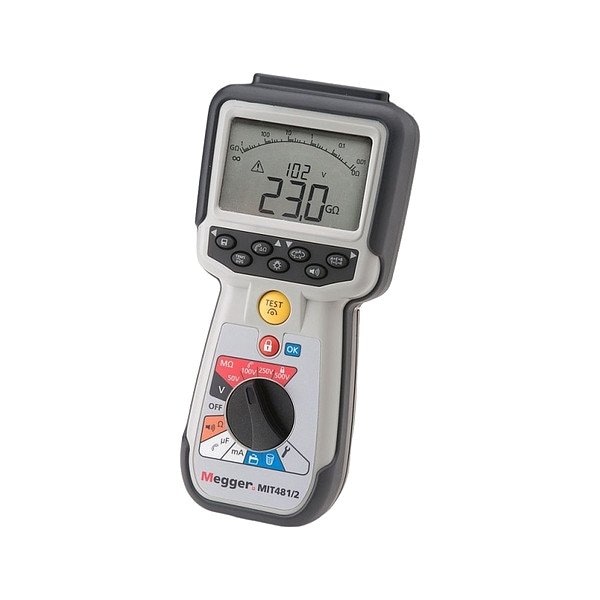

Megger Megohmmeters and Insulation-Te MIT481/2 - main

Megohmmeters and Insulation-Te

  • Mfr # MIT481/2

  • Zoro # G915627870

product price:  $1,675.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Hard Carrying Case, Red/Black Silicone Test Leads with Prods and Clips, SP5 Switched Probe
Calibration Certificate
Yes
Leakage Current Range
3% +/-3 digits +/-0.5% of rated voltage
Auto Ranging
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MIT481/2
Zoro #
G915627870
UPC #
-
Country of Origin
United Kingdom

Dimensions

Tool Length
4.3 in
Tool Width
2.3 in
Tool Height
9 in
Battery Size
AA

Details

Item
Megohmmeter and Insulation Tester
Power Source
Battery
Includes
Hard Carrying Case, Red/Black Silicone Test Leads with Prods and Clips, SP5 Switched Probe
Calibration Certificate
Yes
Leakage Current Range
3% +/-3 digits +/-0.5% of rated voltage
Auto Ranging
Yes
Alert Type
Digital Display, Audible
Maximum AC Voltage Measured
600 V
Parameters Measured
AC Voltage, DC Voltage
Minimum AC Voltage Measured
0 V
Includes Software
Yes
Number of Batteries Required
6
Maximum Operating Temperature
131 Degrees F
Insulation Limit Alarm
Yes
Battery Chemistry
Alkaline
Maximum DC Voltage Measured
600 V
Communication Protocol
Bluetooth
Dustproof
Yes
Number of Digits
2
Waterproof
Yes
Low Resistance Range
0.01 to 1 gigohm
Greater Than 30V Warning
Yes
Maximum Capacitance Measured
10 uF
Maximum Insulation Resistance
100 gigohm
Live Circuit Voltage
Greater Than 25V
Minimum DC Voltage Measured
0 V
IP Rating
IP54
Minimum Operating Temperature
14 Degrees F
Pass/Fail Selection Limits
Yes
Backlit Digital Display
Yes
CAT Safety Rating
CAT IV 600V
Display Type
Analog
Input Impedance
0.25 ohm
Minimum Capacitance Measured
100 pF
Bluetooth Compatible
No
Includes Batteries
Yes
Test Voltage
100V DC, 250V DC, 500V DC, 50V DC
Data Output Type
Bluetooth, USB
Display Screen Type
LCD with Backlight
Minimum Insulation Resistance
0.01 ohm
Resistance Accuracy
+/-2%
Live Circuit Voltage Measurement - Minimum
10 mV
Features
Live Circuit Detection and Protection, Stabilized Insulation Test Voltage (New)
PI/DAR Testing
Yes
USB Data Download Included
No
Calibration Certificate Included
Traceable without Data
Capacitance Auto Discharge
Yes
Installation Tester Socket Region
EU, US
Remote Test Probe Included
Yes
Testing Functions
AC Voltage, DC Voltage
Number of Records Stored
1,000
Instrument Style
Handheld
Live Circuit Voltage Measurement - Maximum
600 V AC/DC
Timed Ramp Voltage Test
No
Test Current
1 mA to 2 mA

Description

Megohmmeter and Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Calibration Certificate Yes, Capacitance Auto Discharge Yes, Display Type Analog, Dustproof Yes, Greater Than 30V Warning Yes, Includes Hard Carrying Case, Red/Black Silicone Test Leads with Prods and Clips, SP5 Switched Probe, Insulation Limit Alarm Yes, Maximum Insulation Resistance 100 gigohm, Minimum Insulation Resistance 0.01 ohm, PI/DAR Testing Yes

Restrictions

Hazardous material
