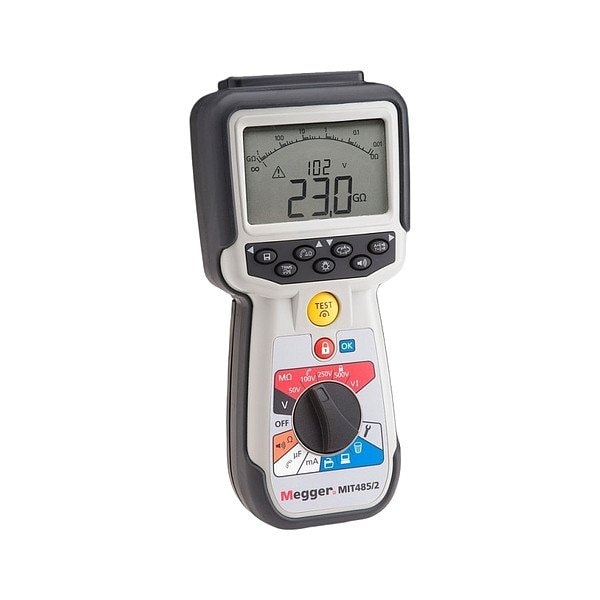

Megger Megohmmeters and Insulation-Te MIT485/2 - main

Megohmmeters and Insulation-Te

  • Mfr # MIT485/2

  • Zoro # G315627869

product price:  $1,733.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Hard Carrying Case, Red/Black Silicone Test Leads with Prods and Clips, SP5 Switched Probe
Leakage Current Range
3% +/-3 digits +/-0.5% of rated voltage
Auto Ranging
Yes
Calibration Certificate
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MIT485/2
Zoro #
G315627869
UPC #
-
Country of Origin
United Kingdom

Dimensions

Battery Size
AA
Tool Width
2.3 in
Tool Height
9 in
Tool Length
4.3 in

Details

Item
Megohmmeter and Insulation Tester
Power Source
Battery
Includes
Hard Carrying Case, Red/Black Silicone Test Leads with Prods and Clips, SP5 Switched Probe
Leakage Current Range
3% +/-3 digits +/-0.5% of rated voltage
Auto Ranging
Yes
Calibration Certificate
Yes
Waterproof
Yes
Minimum Operating Temperature
14 Degrees F
Low Resistance Range
0.01 to 1 gigohm
Alert Type
Digital Display, Audible
Pass/Fail Selection Limits
Yes
Maximum AC Voltage Measured
600 V
Maximum Operating Temperature
131 Degrees F
Greater Than 30V Warning
Yes
Communication Protocol
Bluetooth
Display Type
Analog
Dustproof
Yes
Bluetooth Compatible
Yes
Maximum DC Voltage Measured
600 V
Minimum Capacitance Measured
100 pF
Backlit Digital Display
Yes
Battery Chemistry
Alkaline
Minimum DC Voltage Measured
0 V
Number of Batteries Required
6
Includes Software
Yes
Parameters Measured
AC Voltage, DC Voltage
Number of Digits
2
IP Rating
IP54
Insulation Limit Alarm
Yes
Maximum Capacitance Measured
10 uF
Input Impedance
0.25 ohm
Maximum Insulation Resistance
100 gigohm
Includes Batteries
Yes
Minimum AC Voltage Measured
0 V
CAT Safety Rating
CAT IV 600V
Live Circuit Voltage
Greater Than 25V
Test Voltage
100V DC, 250V DC, 500V DC, 50V DC
Data Output Type
Bluetooth, USB
USB Data Download Included
No
Testing Functions
AC Voltage, DC Voltage
Number of Records Stored
1,000
Instrument Style
Handheld
Calibration Certificate Included
Traceable without Data
Live Circuit Voltage Measurement - Minimum
10 mV
Timed Ramp Voltage Test
No
Test Current
1 mA to 2 mA
PI/DAR Testing
Yes
Resistance Accuracy
+/-2%
Minimum Insulation Resistance
0.01 ohm
Remote Test Probe Included
Yes
Capacitance Auto Discharge
Yes
Display Screen Type
LCD with Backlight
Features
Live Circuit Detection and Protection, Stabilized Insulation Test Voltage (New)
Live Circuit Voltage Measurement - Maximum
600 V AC/DC
Installation Tester Socket Region
EU, US

Description

Megohmmeter and Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible Yes, CAT Safety Rating CAT IV 600V, Calibration Certificate Yes, Capacitance Auto Discharge Yes, Display Type Analog, Dustproof Yes, Greater Than 30V Warning Yes, Includes Hard Carrying Case, Red/Black Silicone Test Leads with Prods and Clips, SP5 Switched Probe, Insulation Limit Alarm Yes, Maximum Insulation Resistance 100 gigohm, Minimum Insulation Resistance 0.01 ohm, PI/DAR Testing Yes
