This item is Discontinued.

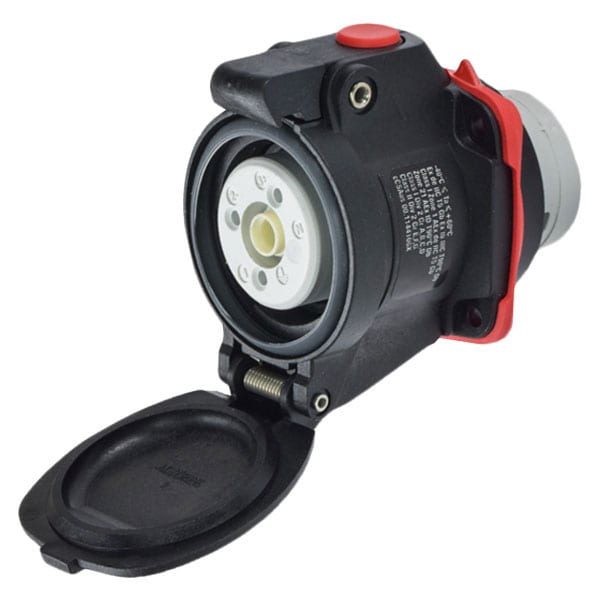

Meltric 22-14043-843-924-R RECEPTACLE PADLOCK PAWL METAL PAWL (ON POLY RECEPTA 22-14043-843-924-R

This item is Discontinued.

Meltric

22-14043-843-924-R RECEPTACLE PADLOCK PAWL METAL PAWL (ON POLY RECEPTA (Discontinued)

Mfr # 22-14043-843-924-R
Zoro # G801755625
UPC # 784474031066
Country of Origin United States
Category Hazardous Location Receptacles
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
22-14043-843-924-R
Zoro #
G801755625
UPC #
784474031066
Country of Origin
United States

Dimensions

Accessory Size
1

Details

Material
Poly
Color
Black
Minimum Operating Temperature
-40F (-40C)
Rated Current
20A
Short Circuit Rating
25 KA - MAKE & WITHSTAND
Phase Terminal Tightening Torque
7.1 IN-LBS / 0.8 N-M
Maximum Operating Temperature
140F (60C)
Phase Cond. Strip Len.
1/2 in (13 mm)
Phase Terminal Type
Screw terminal
Load Break, Abnormal Overload
30A
Load Break, Normal Operation
20A
Frequency
60 Hz
Keying Position
4
Short Circuit Rating, Fusing
25 KA 30A (400%) RK1 NTD
Impact Rating
IK08
Wiring Capacity
16 AWG - 10 AWG
Number of Notch Positions
24
Rated Voltage
480 VAC
Wire Temperature Rating
60C
Contact Configuration
3P+G
Horsepower Rating
7.5HP
CSA Listing
cCSAus || 208161 || C22.2 No. 182.1-07 || C22.2 No. 60079-1
Primary IP Rating
66/67
Voltage Color Code
Red

Description

DXN20 RECEPTACLE POLY BLACK SIZE 1 IP 66/67 3P+G 20A 480 VAC 60 Hz PADLOCK PAWL METAL PAWL (ON POLY RECEPTACLE) NORMALLY CLOSED LID
