  6. Pin & Sleeve Receptacle, 30 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 3R

This item is Discontinued.

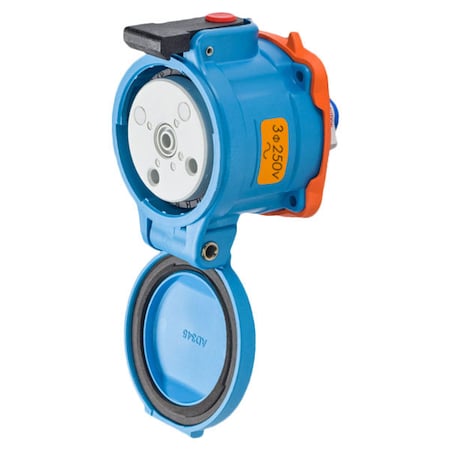

Meltric Pin & Sleeve Receptacle, 30 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 3R 31-14172-K07

Pin & Sleeve Receptacle, 30 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 3R (Discontinued)

  • Mfr # 31-14172-K07
  • Zoro # G001756361
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
31-14172-K07
Zoro #
G001756361
UPC #
784474620284
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 7/16 in (11 mm)
Wire Size
14 AWG to 8 AWG
Use With Installation Accessory Size
2

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
250V AC
Number of Poles
2
Number of Wires
3
IP Rating
IP55
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Use With
Mating Box MB3
Body Material
Polyester
Keying Position
17
Color Code
Orange
Impact Rating
IK08
Number of Aux. Outputs
NO AUX
Operating Temp. Range
-40C to 60C
Hz
60 Hz
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Contact Configuration
2P+G
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Number of Notch Positions
24
Load Break Amp Rating
30A
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating_Abnormal Overload
45A

Description

DR30 RECEPTACLE POLY BLUE SIZE 2 TYPE 3R 2P+G 30A 250 VAC 60 Hz NO AUX
