  6. Pin & Sleeve Receptacle, 50 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

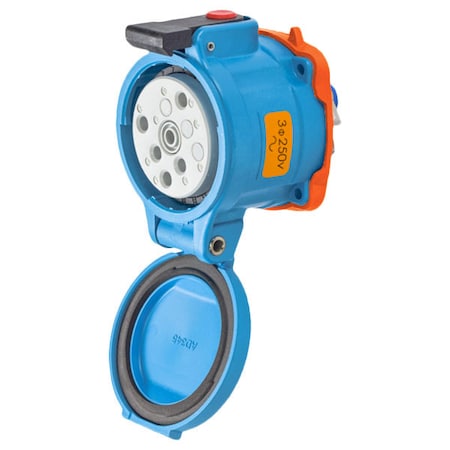

Meltric Pin & Sleeve Receptacle, 50 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 31-34173-K07-972-NC

Pin & Sleeve Receptacle, 50 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 31-34173-K07-972-NC
  • Zoro # G401757562
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
31-34173-K07-972-NC
Zoro #
G401757562
UPC #
784474054041
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
3
Wire Size
14 AWG; 14 AWG to 4 AWG
Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 9/16 in (14 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP55
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682, UL508
Resistance Properties
Impact Resistant
Body Material
Polyester
Use With
Mating Box MB3
Wire Temperature Rating
60 Degrees C
Number of Aux. Outputs
+2 AUX
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Load Break Amp Rating
50A
Auxiliary Contact Voltage Rating
600VAC
Keying Position
17
Impact Rating
IK08
Color Code
Orange
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Number of Notch Positions
24
Hz
60 Hz
Operating Temp. Range
-40C to 60C
Contact Configuration
3P+G
Auxiliary Contact Rating
1.2A
Terminal Connection
Screw
Load Break Amp Rating_Abnormal Overload
75A

Description

DR50 RECEPTACLE POLY BLUE SIZE 3 TYPE 3R 3P+G 50A 250 VAC 60 Hz +2 AUX NORMALLY CLOSED LID
