  6. Pin & Sleeve Receptacle, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

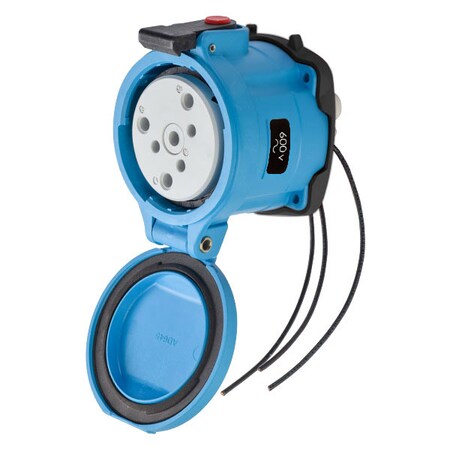

Meltric Pin & Sleeve Receptacle, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 33-64143-263-NC

Pin & Sleeve Receptacle, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 33-64143-263-NC
  • Zoro # G101757428
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
33-64143-263-NC
Zoro #
G101757428
UPC #
784474026864
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 15/16 in (24 mm)
Wire Size
14 AWG; 10 AWG to 2 AWG
Use With Installation Accessory Size
4

Details

Item
Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Impact Resistant
HP
25
Body Material
Polyester
Switch Rated
Yes
Use With
Mating Box MB6
Number of Aux. Outputs
+3 AUX
Hz
60 Hz
Number of Notch Positions
24
Auxiliary Contact Rating
0.6A
Operating Temp. Range
-40C to 60C
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Keying Position
14
Impact Rating
IK08
Terminal Connection
Prewired
Color Code
Black
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Auxiliary Contact Voltage Rating
600VAC
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating
60A
Contact Configuration
3P+G
Load Break Amp Rating_Abnormal Overload
90A

Description

DS60 RECEPTACLE POLY BLUE SIZE 4 TYPE 3R 3P+G 60A 600 VAC 60 Hz +3 AUX NORMALLY CLOSED LID
