  6. Pin & Sleeve Receptacle, 100 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

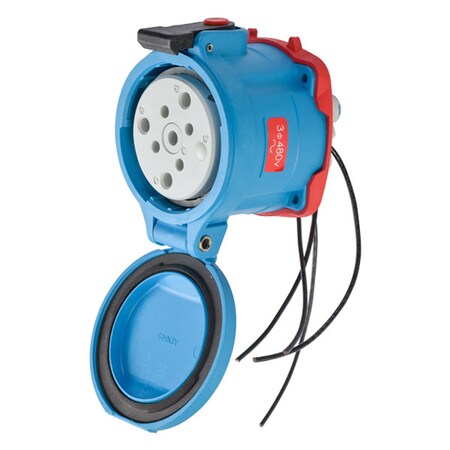

Meltric Pin & Sleeve Receptacle, 100 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 33-64243-C-K04-264

Pin & Sleeve Receptacle, 100 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 33-64243-C-K04-264
  • Zoro # G801758305
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-64243-C-K04-264
Zoro #
G801758305
UPC #
784474063777
Country of Origin
Unknown

Dimensions

Wire Strip Length
Phase: 15/16 in (24 mm)
Use With Installation Accessory Size
4
Wire Size
14 AWG; 10 AWG to 2 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
HP
50
NEMA Rating
4X
Voltage
480V AC
Use With
Mating Box MB6
Body Material
Polyester
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Keying Position
24
Number of Aux. Outputs
+4 AUX
Terminal Type
Screw terminal
Color Code
Red
Operating Temp. Range
-40C to 60C
Contact Configuration
3P+G
Number of Notch Positions
24
Wire Temperature Rating
60 Degrees C
Auxiliary Contact Rating
0.6A
Impact Rating
IK08
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Auxiliary Contact Voltage Rating
600VAC
Terminal Connection
Prewired
Load Break Amp Rating
100A
Hz
60 Hz
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DS100C RECEPTACLE POLY BLUE SIZE 4 TYPE 3R 3P+G 100A 480 VAC 60 Hz +4 AUX
