  6. Pin & Sleeve Receptacle, 100 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver

This item is Discontinued.

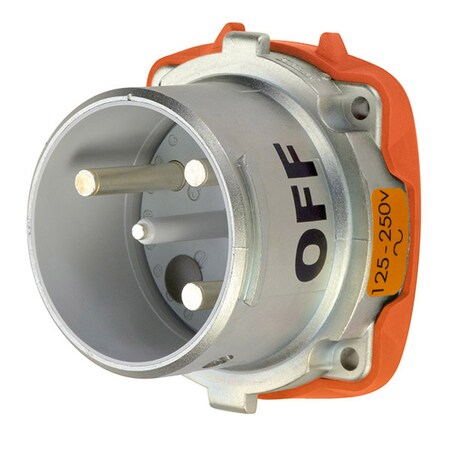

Meltric Pin & Sleeve Receptacle, 100 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver 37-68176-C-K07

Pin & Sleeve Receptacle, 100 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver (Discontinued)

  • Mfr # 37-68176-C-K07
  • Zoro # G101758265
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
37-68176-C-K07
Zoro #
G101758265
UPC #
784474620772
Country of Origin
United States

Dimensions

Wire Size
10 AWG to 2 AWG
Wire Strip Length
Phase: 15/16 in (24 mm)
Use With Installation Accessory Size
4

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
125/250V AC
Number of Poles
2
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Silver
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
HP
5 or 10
Use With
Mating Box MB6
Body Material
Aluminum
Number of Aux. Outputs
NO AUX
Operating Temp. Range
-40C to 60C
Color Code
Orange
Contact Configuration
2P+N+G
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Number of Notch Positions
24
Keying Position
17
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Impact Rating
IK10
Wire Temperature Rating
60 Degrees C
Hz
60 Hz
Load Break Amp Rating
100A
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DS100C INLET METAL SIZE 4 TYPE 3R 2P+N+G 100A 125/250 VAC 60 Hz NO AUX
