  6. Pin & Sleeve Receptacle, 150 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X

This item is Discontinued.

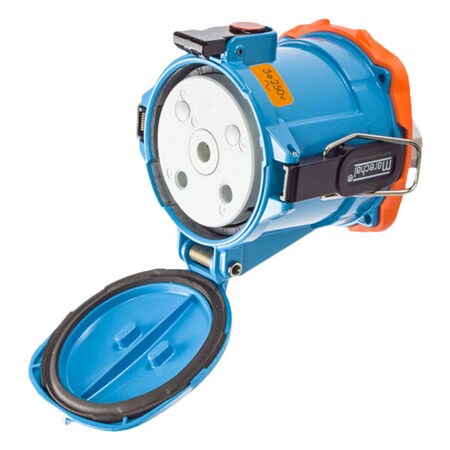

Meltric Pin & Sleeve Receptacle, 150 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X 39-94172-K07

Pin & Sleeve Receptacle, 150 A, 250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X (Discontinued)

  • Mfr # 39-94172-K07
  • Zoro # G601759564
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-94172-K07
Zoro #
G601759564
UPC #
784474652308
Country of Origin
United States

Dimensions

Wire Size
4 AWG to 2/0 AWG
Wire Strip Length
Phase: 1-3/16 in (30 mm)
Use With Installation Accessory Size
5

Details

Item
Pin & Sleeve Receptacle
Current Rating
150 A
Voltage Rating
250V AC
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Use With
Mating Box MB10
Body Material
Aluminum
Number of Notch Positions
24
Wire Temperature Rating
60 Degrees C
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Load Break Amp Rating
150A
Hz
60 Hz
Number of Aux. Outputs
NO AUX
Color Code
Orange
Keying Position
17
Contact Configuration
2P+G
Impact Rating
IK10
Operating Temp. Range
-40C to 60C
Load Break Amp Rating_Abnormal Overload
225A
Flange Type
Flanged

Description

DR150 RECEPTACLE METAL BLUE SIZE 5 TYPE 3R 2P+G 150A 250 VAC 60 Hz NO AUX
