  6. Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

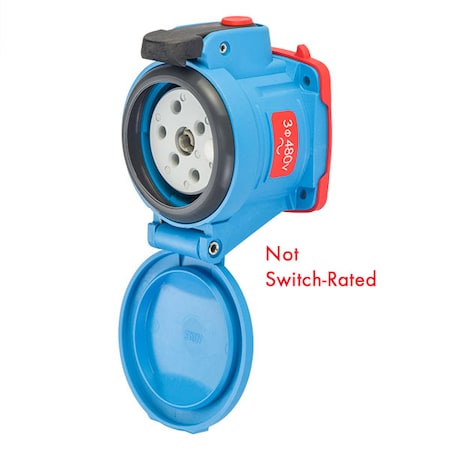

Meltric Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 63-34043-972-352-270

Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 63-34043-972-352-270
  • Zoro # G301756351
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
63-34043-972-352-270
Zoro #
G301756351
UPC #
784474025249
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
2
Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 7/16 in (11 mm)
Wire Size
14 AWG to 14 AWG; 14 AWG to 8 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
UL508
Resistance Properties
Impact Resistant
Body Material
Polyester
Switch Rated
No
Use With
Mating Box MB3
HP
15
Number of Aux. Outputs
+2 AUX
Number of Notch Positions
24
Hz
60 Hz
Terminal Connection
Screw
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Keying Position
4
Impact Rating
IK08
Operating Temp. Range
-40C to 60C
Load Break Amp Rating
30A
Auxiliary Contact Voltage Rating
600VAC
Auxiliary Contact Rating
1.2A
Wire Temperature Rating
60 Degrees C
Contact Configuration
3P+G
Color Code
Red
Load Break Amp Rating_Abnormal Overload
45A

Description

DSN30 RECEPTACLE POLY BLUE SIZE 2 TYPE 4X IP 69 3P+G 30A 480 VAC 60 Hz +2 AUX STRAIGHT INSERTION AUXILIARY SWITCH
