  6. Pin & Sleeve Receptacle, 60 A, 250V AC, Single Phase, 2 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

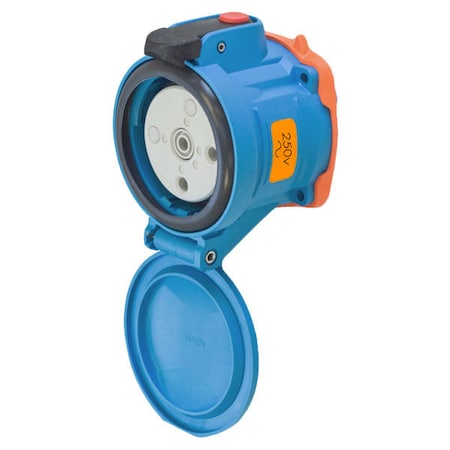

Meltric Pin & Sleeve Receptacle, 60 A, 250V AC, Single Phase, 2 Pole, Screw Terminals Wire Connection Type 63-64072-843

Pin & Sleeve Receptacle, 60 A, 250V AC, Single Phase, 2 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 63-64072-843
  • Zoro # G301759253
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
63-64072-843
Zoro #
G301759253
UPC #
784474566049
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 3/4 in (19 mm)
Wire Size
14 AWG to 4 AWG
Use With Installation Accessory Size
3

Details

Item
Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682
Resistance Properties
Corrosion Resistant, Impact Resistant
Switch Rated
Yes
Body Material
Polyester
HP
3
Wire Temperature Rating
60 Degrees C
Color Code
Orange
Contact Configuration
2P+G
Operating Temp. Range
-40C to 60C
Number of Aux. Outputs
NO AUX
Hz
60 Hz
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Keying Position
7
Impact Rating
IK08
Number of Notch Positions
24
Load Break Amp Rating
60A
Load Break Amp Rating_Abnormal Overload
90A

Description

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 2P+G 60A 250 VAC 60 Hz NO AUX PADLOCK PAWL
