  6. Pin & Sleeve Receptacle, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type

This item is Discontinued.

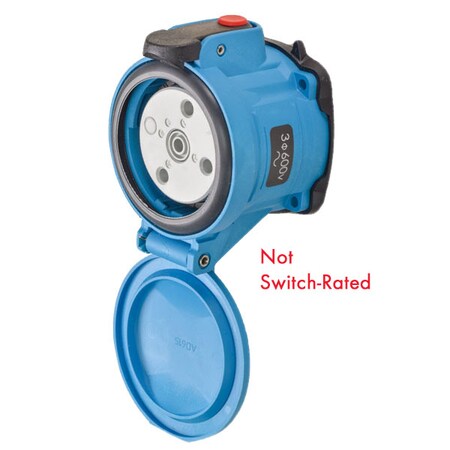

Meltric Pin & Sleeve Receptacle, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type 63-64143-352-843

Pin & Sleeve Receptacle, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type (Discontinued)

  • Mfr # 63-64143-352-843
  • Zoro # G201757182
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
63-64143-352-843
Zoro #
G201757182
UPC #
784474042598
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
3
Wire Size
14 AWG to 4 AWG
Wire Strip Length
Phase: 3/4 in (19 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682
Resistance Properties
Impact Resistant
HP
20
Body Material
Polyester
Switch Rated
No
Use With
Mating Box MB3
Hz
60 Hz
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Wire Temperature Rating
60 Degrees C
Operating Temp. Range
-40C to 60C
Number of Notch Positions
24
Color Code
Black
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Number of Aux. Outputs
NO AUX
Load Break Amp Rating
60A
Keying Position
14
Contact Configuration
3P+G
Impact Rating
IK08

Description

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 3P+G 60A 600 VAC 60 Hz NO AUX STRAIGHT INSERTION PADLOCK PAWL
