  6. Pin & Sleeve Inlet, 100 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver, NEMA 4X

This item is Discontinued.

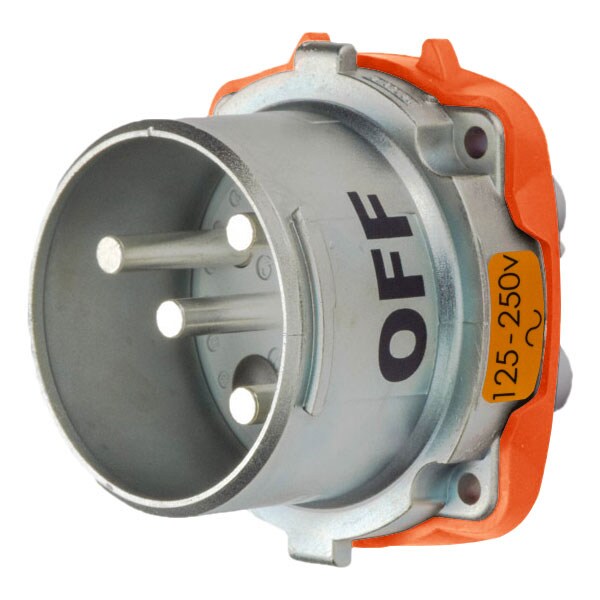

Meltric Pin & Sleeve Inlet, 100 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver, NEMA 4X 39-68176-K07

Pin & Sleeve Inlet, 100 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Silver, NEMA 4X (Discontinued)

  • Mfr # 39-68176-K07
  • Zoro # G401757555
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
39-68176-K07
Zoro #
G401757555
UPC #
784474630887
Country of Origin
United States

Dimensions

Wire Strip Length
Phase: 15/16 in (24 mm)
Use With Installation Accessory Size
4
Wire Size
10 AWG to 2 AWG

Details

Item
Pin & Sleeve Inlet
Current Rating
100 A
Voltage Rating
125/250V AC
Number of Poles
2
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Silver
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Impact Resistant
Body Material
Zamak
Use With
Mating Box MB6
Load Break Amp Rating
100A
Hz
60 Hz
Impact Rating
IK09
Number of Aux. Outputs
NO AUX
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Contact Configuration
2P+N+G
Keying Position
17
Number of Notch Positions
24
Color Code
Orange
Operating Temp. Range
-40C to 60C
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating_Abnormal Overload
150A

Description

DR100 INLET METAL SIZE 4 TYPE 3R 2P+N+G 100A 125/250 VAC 60 Hz NO AUX
