  11. Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

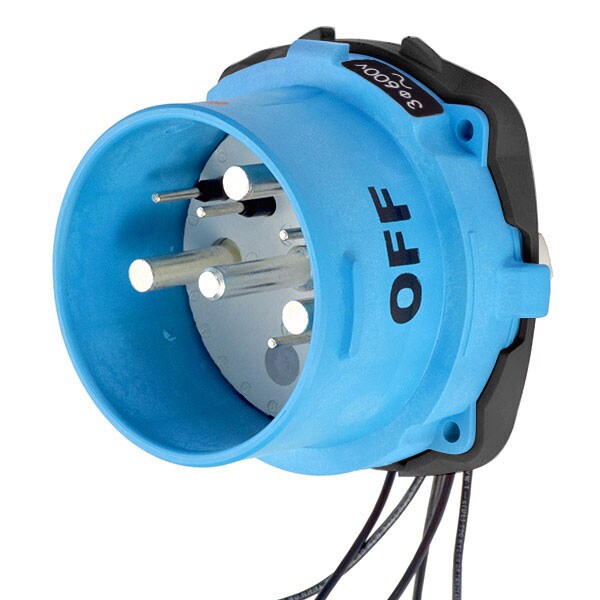

Meltric Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue 33-98143-975

Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 33-98143-975
  • Zoro # G001759973
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-98143-975
Zoro #
G001759973
UPC #
784474047937
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
5
Wire Strip Length
Phase: 1-3/16 in (30 mm)
Wire Size
14 AWG to 14 AWG; 4 AWG to 2/0 AWG

Details

Item
Pin & Sleeve Inlet
Current Rating
100 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Impact Resistant
Body Material
Polyester
Switch Rated
Yes
Auxiliary Contact Rating
0.3A
Wire Temperature Rating
60 Degrees C
Operating Temp. Range
-40C to 60C
Impact Rating
IK08
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Color Code
Black
Terminal Connection
Prewired
Keying Position
14
Contact Configuration
3P+G
Number of Aux. Outputs
+5 AUX
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Load Break Amp Rating
150A
Auxiliary Contact Voltage Rating
600VAC
Hz
60 Hz
Flange Type
Flanged

Description

DS100 INLET POLY BLUE SIZE 5 TYPE 4X 3P+G 100A 600 VAC 60 Hz +5 AUX
