  11. Pin & Sleeve Inlet, 20 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue
This item is Discontinued.

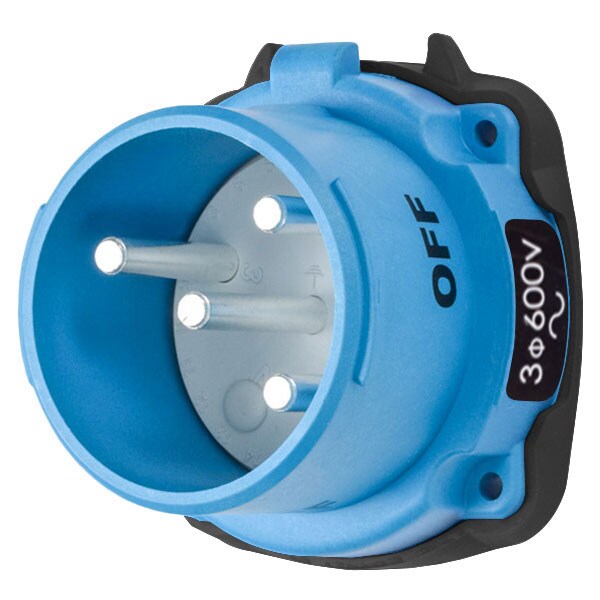

Meltric Pin & Sleeve Inlet, 20 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue 33-18143-A155

Pin & Sleeve Inlet, 20 A, 600V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 33-18143-A155
  • Zoro # G801758596
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-18143-A155
Zoro #
G801758596
UPC #
784474053327
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
2
Wire Strip Length
Phase: 3/4 in (19 mm)
Wire Size
14 AWG to 8 AWG

Details

Item
Pin & Sleeve Inlet
Current Rating
20 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP54
NEMA Enclosure Rating
3R
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682
Resistance Properties
Impact Resistant
Use With
Mating Box MB3
NEMA Rating
3R
Voltage
600V AC
HP
10
Body Material
Polyester
Switch Rated
Yes
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Operating Temp. Range
-40C to 60C
Contact Configuration
3P+G
Hz
60 Hz
Keying Position
14
Terminal Type
Screw terminal
Wire Temperature Rating
60 Degrees C
Impact Rating
IK08
Number of Notch Positions
24
Load Break Amp Rating
20A
Number of Aux. Outputs
NO AUX
Color Code
Black
Tightening Torque
Phase: 15 IN-LBS / 1.7 N-M
Load Break Amp Rating_Abnormal Overload
30A

Description

DS20 INLET POLY BLUE SIZE 2 TYPE 3R 3P+G 20A 600 VAC 60 Hz NO AUX WITH NO LOCKOUT HOLE
